Thrust Ball Bearings

What are thrust ball bearings?

Thrust ball bearings are a type of rotary bearing designed to handle axial (thrust) loads, which are forces parallel to the shaft's axis. Unlike radial thrust ball bearing that primarily support radial loads (perpendicular to the shaft), thrust ball bearings are specifically engineered to manage axial loads in one direction.

Key features of thrust ball bearings

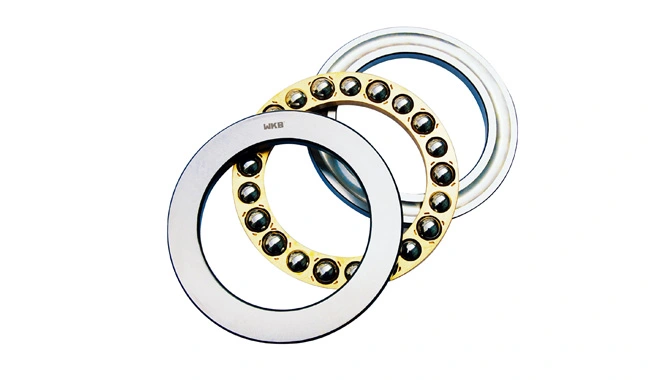

Design: Thrust ball bearings consist of two washers (a shaft washer and a housing washer) and a set of ball bearings retained by a cage. The ball bearings enable smooth rotation between the washers.

Direction of Axial Load: Thrust ball bearings are designed to handle axial loads in one direction only. They are not suitable for radial loads or bidirectional axial loads.

Single-Direction and Double-Direction Types: There are single-direction thrust ball bearing type that can accommodate axial loads in one direction, and double-direction thrust ball bearings that can handle axial loads in both directions.

Contact Angle: Thrust ball bearings typically have a 90-degree contact angle between the ball and the raceway, ensuring efficient load transfer.

Separable Design: Many thrust ball bearings are separable, meaning that the shaft washer, housing washer, and ball cage assembly can be separated for ease of installation, inspection, and maintenance.

It's crucial to choose the right type and size of thrust ball bearing from reputable thrust ball bearings manufacturers based on the specific axial load requirements and operating conditions of the application. The proper lubrication and maintenance are also essential for ensuring optimal performance and longevity of thrust ball bearings.

What is the difference between axial and radial bearing?

Axial (thrust) bearings and radial bearings are two fundamental types of bearings designed to handle different types of loads in mechanical systems. Here are the key differences between axial and radial bearings:

• Load Direction:

 Radial Bearings: Designed to support radial loads, which are forces acting perpendicular to the shaft's axis. Radial bearings primarily handle the weight of rotating components and resist radial forces.

Axial (Thrust) Bearings: Specifically engineered to handle axial loads, which are forces acting parallel to the shaft's axis. Axial bearings support and control thrust forces generated during axial movements.

• Design:

Radial Bearings: Common types include deep groove ball bearings, cylindrical roller bearings, and tapered roller bearings. They have a ring or raceway that accommodates radial loads.

Axial (Thrust) Bearings: Types include thrust ball bearings, thrust roller bearings, and thrust needle roller bearings. They have components designed to handle axial forces.

• Application:

Radial Bearings: Found in applications where radial loads are predominant, such as in the wheels of vehicles, electric motors, and conveyor belts.

Axial (Thrust) Bearings: Used in applications where axial loads need to be accommodated, such as in automotive transmissions, screw jacks, and certain types of gearboxes.

• Load Capacity:

 Radial Bearings: Primarily designed to handle radial loads, and their load capacity diminishes significantly when subjected to axial loads.

Axial (Thrust) Bearings:Engineered to handle axial loads and are less effective at handling radial loads compared to radial bearings.

• Construction:

Radial Bearings: Typically consist of an inner and outer ring with rolling elements (balls or rollers) between them.

Axial (Thrust) Bearings: Usually comprise washers, rolling elements, and a cage, allowing for controlled movement of axial loads.

• Direction of Movement:

Radial Bearings: Ideal for rotational movement around the shaft.

Axial (Thrust) Bearings: Suitable for linear movement along the shaft's axis.

Understanding the type of load and the direction of forces in a given application is crucial for selecting the appropriate bearing type. In many applications, a combination of both radial and axial bearings may be used to support different load types.

How Does thrust ball bearings Work?

Thrust ball bearings for sale  are designed to handle axial loads, which are forces acting parallel to the shaft's axis. Here's how thrust ball bearings work:

Construction:

- Thrust ball bearings consist of two washers (a shaft washer and a housing washer) and a set of ball bearings retained by a cage. The ball bearings enable smooth rotation between the washers.

Contact Angle:

- Thrust ball bearings typically have a 90-degree contact angle between the ball and the raceway. This angle ensures efficient load transfer and allows the bearings to handle axial loads effectively.

Load Transmission:

- When an axial load is applied along the shaft's axis, the load is transmitted through the balls in the bearing. The contact between the balls and the raceways facilitates the transfer of the axial force.

Single-Direction and Double-Direction:

- In single-direction thrust ball bearings, the load is accommodated in one direction only. Double-direction thrust ball bearings can handle axial loads in both directions.

Separable Design:

- Many thrust ball bearings are separable, allowing the shaft washer, housing washer, and ball cage assembly to be separated for ease of installation, inspection, and maintenance.

Lubrication:

- Proper lubrication is crucial for the smooth operation of thrust ball bearings. Lubricants reduce friction between the moving parts, dissipate heat, and prevent wear.

Misalignment Compensation:

- Some designs incorporate a spherical seat washer, allowing for slight misalignment between the shaft and housing. This feature enhances the bearing's performance in applications where misalignments may occur.

Proper installation, maintenance, and selection of the right type of thrust ball bearing based on the specific application requirements are essential for ensuring optimal performance and longevity.

Where Are Thrust Ball Bearing Used?

Thrust ball bearings, available at competitive thrust ball bearing prices, are extensively employed for supporting axial loads in a single direction. Some common uses include automotive transmissions, agricultural equipment, pumps, compressors, and machine tools. They are utilized in systems where there is a need for separate axial and radial load support, such as steering systems, clutches, and thrust reversers in aircraft engines. Thrust ball bearings are also found in small, low-load applications like desk fans and household appliances. Their ability to handle high axial loads and offer precise positioning and alignment makes them essential components in various industries.
