Split Spherical Roller Bearings (Metric)

Name: Split Spherical Roller Bearings (Metric)
Brand: WKB (Wafangdian) Bearing Technology Co., Ltd.
Price: 150-800 USD
Rating: 4.8 (50 reviews)

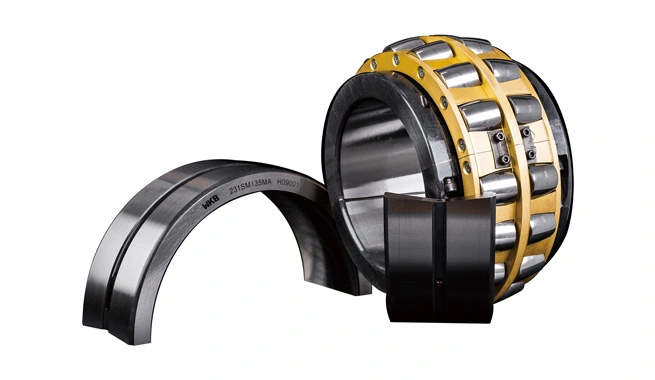

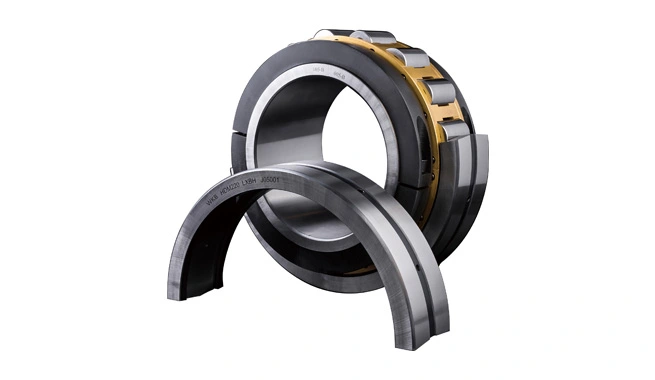

Split Spherical Roller Bearings (Metric) are designed with a split housing and double row of spherical rollers. They offer easy installation and replacement in inaccessible locations, reducing downtime. These bearings excel in handling heavy loads and misalignment, making them suitable for industrial applications requiring flexibility and reliability.

Features of Split Spherical Roller Bearings (Metric)

Dual Spherical Rollers: With a double row of spherical rollers, split spherical bearings (Metric)effectively manage heavy radial and axial loads while accommodating shaft misalignment.

Reduction in Downtime: The split construction facilitates quicker replacement, minimizing downtime during maintenance operations and reducing overall operational costs.

Adjustable Clearance: Some split spherical roller bearings provide the option for adjustable internal clearance. Split Spherical Roller Bearings (Metric) feature a split housing, allowing for convenient installation and replacement, especially in hard-to-reach or confined spaces.

High Load Capacity: Split Spherical Roller Bearings excel in applications requiring load capacity, misalignment tolerance, and reliability, making them valuable in various industries such as mining, paper, and steel.

Sealed Options: Some models come with built-in seals or shields, providing enhanced protection against contaminants and extending the bearing's service life in challenging environments.

Temperature Resistance: Split spherical roller bearings(Metric) are often engineered to withstand elevated temperatures, ensuring reliable performance in demanding conditions.

The ease of installation and maintenance, coupled with the reduction in downtime, contributes to cost savings over the bearing's lifecycle. When considering split spherical roller bearings, it's essential to choose the right type and model based on the specific requirements of the application to ensure optimal performance and longevity.

Products

Specs of Split Spherical Roller Bearings (Metric)

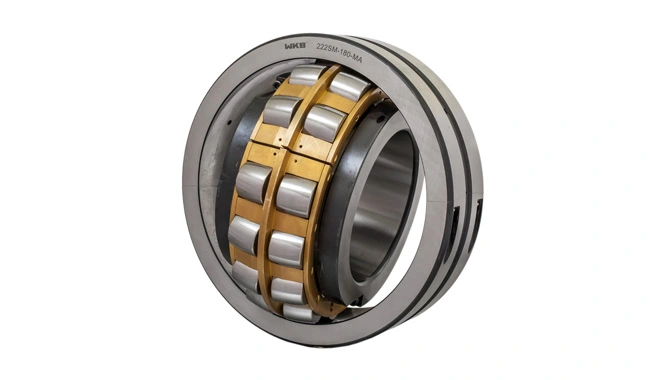

Split Spherical Bearing

100 mm-420 mm Split Spherical Roller Bearings (Metric) Specs

Basic Size					Basic load rating dynamic, static		Calculation cefficient				Fatigue load limtited value	Designation	Dimensions	ermitted axial load' max	Limit Speed	Screw tightening torque		Replace non-split spherical roller bearing with withdrawal sleeves		Suitable bearing housing^**)	Mass
d	D	C	B	r^min	C	C。	e	Y₁	Y₂	Y₀			d	F^a		M_i	M_a	Bearing	Withdrawal sleeves
mm					kN		-				C_ur	-		kN	min^-1	Nm	Nm				kg
100	180	56	90	2	310	430	0.28	2.37	3.53	2.32	40	231SM100-MA	100	7.6	1100	14	4	23122K	H3122		6.8
100	200	53	92	2.1	360	465	0.24	2.84	4.23	2.78	39.5	222SM100-TVPA	100	13.8	1 500	35	14	22222K	H322	SNV200 1)	8.88
110	180	46	86	2	270	390	0.23	2.9	4.31	2.83	29.5	230SM1 10-MA	110	7.6	1100	14	4	23024K	H3024	S3024-H-N-FZ 1)	5.26
	200	62	102	2	390	570	0.28	2.41	3.59	2.35	39	231SM110-MA		14	1000	35	8	23124K	H3124		9.51
	215	58	98	2.1	455	585	0.25	2.71	4.04	2.65	47	222SM 110-TVPA		13.8	1300	35	14	22224K	H3124	SNV215	10.6
115	200	52	90	2	305	455	0.22	3.04	4.53	2.97	35	230SM11 5-MA	115	7.6	1100	14	8.5	23026K	H3026	S3026-H-N-FZ 1)	9.5
	210	64	104	2	490	710	0.28	2.39	3.56	2.34	49.5	231SM11 5-MA		7.6	900	14	4	23126K	H3126		11.2
	230	64	104	3	540	720	0.25	2.71	4.04	2.65	53	222SM115-TVPA		13.8	1200	35	14	22226K	H3126	SNV230	14.3
125	210	53	94	2	390	600	0.23	2.95	4.4	2.89	44	230SM125-MA	125	7.6	950	14	4	23028K	H3028	S3028-H-N-FZ 1)	10
	225	68	110	2.1	510	750	0.28	2.45	3.64	2.39	51	231SM125-MA		13.8	850	35	8.5	231 28K	H3128		13.5
	250	68	110	3	630	880	0.26	2.62	3.9	2.56	60	222SM125-TVPA		13.8	1100	35	14	22228K	H3128	SNV250	17.9
135	225	56	100	2.1	405	620	0.22	3.07	4.57	3	46	230SM135-MA	135	13.8	950	35	8.5	23030K	H3030	S3030-H-N-FZ 1)	13
	250	80	123	2.1	570	850	0.27	2.49	3.71	2.43	57	231 SM135-MA		22.2	800	69	14	23130K	H3130		19.5
	270	73	122	3	735	1020	0.25	2.67	3.97	2.61	73	222SM135-TVPA		22.2	1000	69	35	22230K	H31 30	SNV270	24.1
140	240	60	106	2.1	450	680	0.22	3.1	4.62	3.03	51	230SM140-MA	140	13.8	900	35	8.5	23032K	H3032	S3032-H-N-FZ 1)	15.5
	270	86	135	2.1	71 0	1040	0.29	2.32	3.45	2.26	87	231SM140-MA		21.7	700	69	12.4	23132K	H3132		25.8
	290	80	124	3	850	1200	0.25	2.69	4	2.63	83	222SM 140-TVPA		22.2	950	69	35	22232K	H3132	SNV290	28.5
150	260	67	112	2.1	510	800	0.22	3.1	4.62	3.03	57	230SM1 50-MA	150	13.8.	800	35	8.5	23034K	H3034	S3034-H-N-FZ	17.4
	280	88	133	2.1	710	1040	0.29	2.32	3.45	2.26	87	231 SM150-MA		22	700	69	35	231 34K	H3134	SD3134-H-TS	28
	310	86	128	4	965	1370	0.26	2.64	3.93	2.58	94	222SM1 50-TVPA		22.2	900	69	35	22234K	H3134	SD534-N-FZ	35.5
160	280	74	123	2.1	640	1000	0.23	2.98	4.44	2.92	96	230SM160-MA	160	22.2	750	69	14	23036K	H3036	S3036-H-N-FZ	24.4
	300	96	140	2.1	830	1220	0.29	2.32	3.45	2.26	100	231SM160-MA		22	670	69	35	23136K	H3136	SD3136-H-TS	32.7
	320	86	131	4	965	1370	0.26	2.64	3.93	2.58	94 .	222SM160-TVPA		22.2	900	69	35	22236K	H3136	SD536-N-FZ	37.6
170	290	75	120	2.1	780	1250	0.23	2.9	4.31	2.83	113	230SM170-MA	170	22.2	700	69	14	23038K	H3038	S3038-H-N-FZ	23.6
	320	104	142	2.1	915	1430	0.28	2.37	3.53	2.32	114	231SM170-MA		22	630	69	35	23138K	H3138	SD3138-H-TS	40.6
	340	92	142	4	1140	1630	0.25	2.71	4.04	2.65	111	222SM170-TVPA		22.2	800	69	35	22238K	H3138	SD538-N-FZ	43.6
180	310	82	134	2.1	800	1270	0.23	2.98	4.44	2.92	115	230SM180-MA	180	22	670	69	14	23040K	H3040	S3040-H-N-FZ	30
	340	112	160	3	1020	1530	0.29	2.32	3.45	2.26	119	231SM 180-MA		22	600	69	35	23140K	H3140	SD3140-H-TS	56.4，
	360	98	154	4	1140	1630	0.25	2.71	4.04	2.65	104	222SM 180-MA		22.2	600	69	35	22 240K	H3140	SD540-N-FZ	52.7
200	340	90	136	3	965	1530	0.23	2.9	4.31	2.83	136	230SM200-MA	200	22	630	69	35	23044K	H3044X	S3044-H-N-FZ	45
200 (cont.)	370	120	175	4	1320	2040	0.31	2.21	3.29	2.16	151	231 SM 200-MA	200 (cont.)	32	530	120	69	23144K	H3144X	SD3144-H-TS	61.8
200 (cont.)	400	108	162	4	1340	1900	0.25	2.69	4	2.63，	121	222SM 200-MA	200 (cont.)	32	560	120	69	22244K	H3144X	SD544-N-FZ	69.6
220	360	92	156	3	1100	1830	0.23	2.9	4.31	2.83	152	230SM220-MA	220	32	560	120	35	23048K	H3048	S3048-H-N-FZ	42.6
	400	128	190	4	1630	2600	0.3	2.25	3.34	2.2	191	231SM220-MA		32	480	120	69	23 148K	H3148X	SD3148-H-TS	86
	440	120	170	4	1460	2080	0.25	2.71	4.04	2.65	126	222SM220-MA		32	500	120	69	22248K	H3148X	SD548-N-FZ	90.9
240	400	104	160	4	1220	2120	0.22	3.04	4.53	2.97	177	230SM240-MA	240	32	560	120	69	23052K	H3052	S3052-H-N-FZ	57.4
	440	144.	210	4	1860	3050	0.3	2.28	3.39	2.23	218	231 SM240-MA		32	450	120	69	231 52K	H3152X	SD3152-H-TS	118
	480	130	200	5	1 860	2600	0.26	2.64	3.93	2.58	157	222SM 240-MA		60	450	295	120	22252K	H3152X	SD552-N-FZ	136
260	420	106	170	4	1460	2450	0.23	2.95	4.4	2.89	200	230SM260-MA	260	32	500	120	35	23056K	H3056	S3056-H-N-FZ	63.6
	460	146	190	5	2280	3800	0.3	2.23	3.32	2.18	255	231SM 260-MA		32	400	120	35	231 56K	H3156X	SD3156-H-TS	109
	500	130	200	5	2200	3100	0.25	2.67	3.97	2.61	182	222SM260-MA		60	430	295	69	22256K	H3156X	SD556-N-FZ	147
280	460	118	176	4	1 600	2800	0.22	3.04	4.53	2.97	228	230SM280-MA	280	32	480	120	69	23060K	H3060	S3060-H-N-FZ	96
	500	160	218	5	2320	3900	0.29	2.32	3.45	2.26 ,	265	231 SM280-MA		44	400	190	120	231 60K	H3160HG	SD3160-H-TS	160
	540	140	200	5	2400	3550	0.24	2.79	4.15	2.73	212	222SM 280-MA		60	430	295	120	22260K	H3160HG	SD560-N-FZ	157
300	480	121	186	4	1860	3200	0.23	2.9	4.31	2.83.	255	230SM300-MA	300	32	430	120	69	23064K	H3064HG	S3064-H-N-FZ	108
	540	176	225	5	2750	4750	0.29	2.3	3.42	2.25	305	231 SM300-MA		60	360	295	120	231 64K	H3164HG	SD3164-H-TS	184
	580	150	21 2	5	2650	4050	0.24	2.84	4.23	2.78	228	222SM300-MA		60	380	295	120	22264K	H3164HG	SD564-N-FZ	214
320	520	133	200	5	2040	3650	0.22	3.04	4.53	2.97	285	230SM320-MA	320	60	430	295	69	23068K	H3068HG	S3068-H-N-FZ	122
	580	190	258	5	3100	5200	0.3	2.26	3.37	2.21	325	231SM320-MA		60	340	295	190	231 68K	H3168HG	SD3168-H-TSTS	226
	620	165	230	6	3100	4750	0.24	2.76	4.11	2.7	270	222SM320-MA		60	360	295	120	22268K	H31 68HG		245
340	540	134	205	5	2360	4150	0.22	3.01	4.48	2.94	315	230SM340-MA	340	60	380	295	69	23072K	H3072HG	S3072-H-N-FZ	150
	600	192	270	5	3900	6800	0.3	2.25	3.34	2.2	410	231SM340-MA		60	300	295	70	23172K	H3172HG	SD31 72-H-TS	314
	650	170	240	6	3450	5100	0.25	2.69	4	2.63	280	222SM340-MA		60	340	295	120	22272K	H31 72HG		267
360	560	135	218	5	2550	4650	0.22	3.1	4.62	3.03	350	230SM360-MA	360	60	380	295	69	23076K	H3076HG	S3076-H-N-FZ	165
360	620	194	270	5	3900	6950	0.3	2.28	3.39	2.23	420	231 SM360-MA	360	50	300	295	69	231 76K	H31 76HG	SD31 76-H-TS	292
380	600	148	225	5	2700	5100	0.21	3.2	4.77	3.13	390	230SM380-MA	380	60	380	295	120	23080K	H3080HG	S3080-H-N-FZ	187
380	650	200	270	6	4050	7200	0.28	2.39	3.56	2.34	440	231 SM380-MA	380	60	300	295	120	231 80K	H3180HG	SD31 80-H-TS	326
400	620	150	225	5	3100	5700	0.22	3.1	4.62	3.03	420	230SM400-MA	400	60	340	295	69	23084K	H3084XHG	S3084-H-N-FZ	214
400	700	224	285	6	4400	7650	0.28	2.39	3.56	2.34	480	231 SM 400-MA	400	60	280	295	190	231 84K	H3184HG	SD31 84-H-TS	371
410	650	157	225	5	3100	5850	0.21	3.2	4.77	3.13	425	230SM410-MA	410	60	340	295	120	23088K	H3088HG	S3088-H-N-FZ	246
420	650	157	235	5	3100	5850	0.21	3.2	4.77	3.13	425	230SM420-MA	420	60.5	340	295	120	23088K	AHX3088GH 1)		246
