spherical roller thrust bearing application

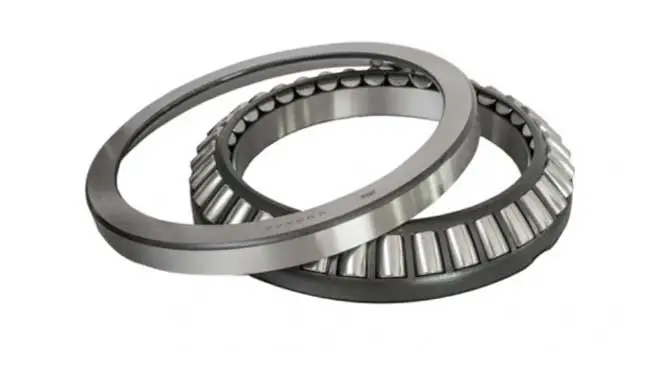

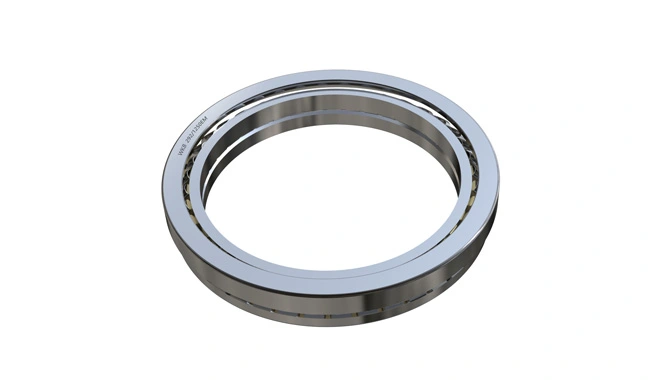

Spherical Roller Thrust Bearings

Name: Spherical Roller Thrust Bearings
Brand: WKB (Wafangdian) Bearing Technology Co., Ltd.
Price: 150-800 USD
Rating: 4.8 (50 reviews)

Spherical roller thrust bearings are a type of rolling element bearing designed to handle axial loads in a specific direction. They feature barrel-shaped rolling elements and self-aligning properties, allowing them to accommodate misalignment and distribute loads over a larger surface area, making them suitable for applications with heavy loads and potential misalignment.

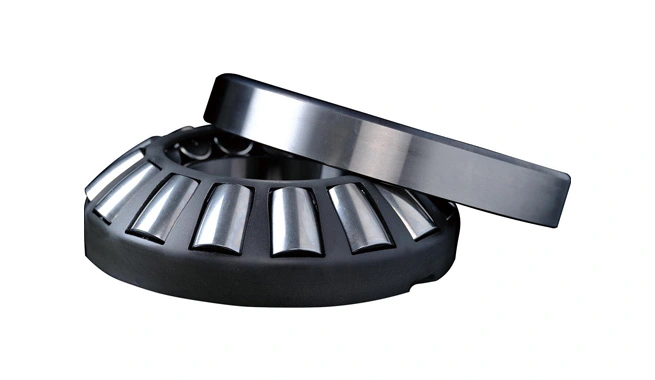

Applications of Spherical Roller Thrust Bearing

High-power Gearbox
Cranes and Swing Bridges
Screw Conveyors
Pulp and Paper Refiners
Metallurgical Machinery Reducers
Oil Drilling Rigs
Extruders
Coal Mills
Ship Propellers

If you require bearings that can handle higher combined radial and axial loads, spherical roller thrust bearings are an excellent choice.

Features of Spherical Roller Thrust Bearings

Spherical roller thrust bearings possess several key features that make them suitable for demanding applications:

1. High load-carrying capacity: This type of roller bearing is designed to support heavy axial loads in both directions while also being capable of handling limited radial loads.

2. Self-aligning capability: Spherical roller thrust bearings can accommodate misalignment and shaft deflections, ensuring proper operation and reducing stress on the bearing and surrounding components.

3. Robust construction: They are built with a solid outer ring, sturdy cages, and high-quality materials, providing durability and reliability even under harsh operating conditions.

4. Lubrication options: Spherical roller thrust bearings are available with different lubrication options, including oil or grease, to suit specific application requirements.

5. Versatility: These bearings can be used in a wide range of industries, including mining, construction, paper mills, and wind turbines, due to their ability to handle heavy loads and accommodate misalignment.

Products

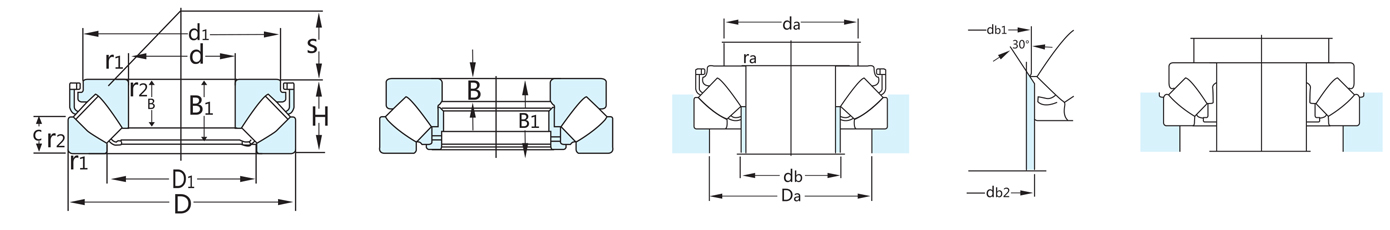

Specs of Spherical Roller Thrust Bearings

100 mm-420 mm Spherical Roller Thrust Bearings Specs

Basic Size			Basic load rating dynamic, static		Code	Speed Ratings		Mass	Dimensions								Shoulder and chamfer dimensions
Basic Size			Basic load rating dynamic, static		Code	Speed Ratings		Mass	Dimensions								Shoulder and chamfer dimensions
d	D	H	C	C。		Reference Speed	Limiting Speed		d	d₁	D₁	B	B₁	C	r_1.2min	S	d_amin	D_b1max	D_b2max	_Damax	r_amax
mm			kN		-	r/min		kg	mm								mm
100	170	42	465	1290	29320E	2200	3600	3.65	100	152	128	26.2	36.3	20.5	1.5	58	130	107	107	147	1.5
100	210	67	980	2500	29420E	1700	3000	10.5	100	182	142	43	57.3	32	3	62	150	110	110	175	2.5
110	190	48	610	1730	29322E	1900	3200	5.3	110	171	140	30.3	41.7	24.8	2	63.8	145	117	117	164	2
110	230	73	1180	3000	29422E	1600	2800	13.5	110	199	156	47	64.7	34.7	3	69	165	120	129	193	2.5
120	210	54	765	2120	29324E	1700	2800	7.35	120	188	155	34	48.2	27	2.1	70	160	128	128	181	2
120	250	78	1370	3450	29424E	1500	2600	17.5	120	216	171	50.5	70.3	36.5	4	74	180	132	142	209	3
130	225	58	865	2500	29326E	1600	2600	9	130	203	166	36.7	50.6	30.1	2.1	75.6	175	138	143	194	2
130	270	85	1560	4050	29426E	1300	2400	22	130	234	185	54	76	40.9	4	81	195	142	153	227	3
140	240	60	980	2850	29328E	1500	2600	10.5	140	216	177	38.5	54	30	2.1	82	185	148	154	208	2
140	280	85	1630	4300	29428E	1300	2400	23	140	245	195	54	75.6	41	4	86	205	153	162	236	3
150	215	39	408	1600	29230E	1800	2800	4.3	150	200	176	24	34.3	20.5	1.5	82	180	154	154	193	1.5
	250	60	1000	2850	29330E	1500	2400	11		223	190	38	54.9	28	2.1	87	195	158	163	219	2
	300	90	1860	5100	29430E	1200	2200	28		262	208	58	80.8	43.4	4	92	220	163	175	253	3
160	225	39	357	1460	29232E		1700	4.8	160	220	188	11	34.3	20	1.5	87	190			204	1.5
	270	67	1180	3450	29332E	1300	2200	14.5		243	203	42	60	33	3	92	210	169	176	235	2.5
	320	95	2080	5600	29432E	1100	2000	32		279	224	60.5	84.3	45.5	5	99	235	175	189	270	4
170	240	42	408	1660	29234E		1600	5.95	170	235	201	13	40	22	1.5	93	205			218	1.5
	280	67	1200	3550	29334E	1300	2200	15		251	215	42.2	61.1	30.5	3	96	220	178	188	245	2.5
	340	103	2360	6550	29434E	1100	1900	44.5		297	236	65.5	91.2	50	5	104	250	185	199	286	4
180	250	42	495	2040	29236E	1600	2600	5.8	180	234	208	26	36.9	22	1.5	97	210	187	187	226	1.5
	300	73	1430	4300	29336E	1200	2000	19.5		270	227	46	66.2	35.5	3	103	235	189	195	262	2.5
	360	109	2600	7350	29436E	1000	1800	52.5		315	250	69.5	96.4	53	5	110	265	196	210	304	4
190	270	48	518	2200	29238EM		1400	8.7	190	255	226	14	45	25.5	2	103	225			243	2
	320	78	1630	4750	29338E	1100	1900	23.5		285	244	49	71.3	36	4	110	250	200	211	280	3
	380	115	2850	8000	29438E	950	1700	60.5		332	265	73	101	55.5	5	117	280	207	223	321	4
200	280	48	656	2650	29240E	1400	2200	9.3	200	260	233	30	43.4	24	2	108	235	206	207	253	2
	340	85	1860	5500	29340E	1000	1700	29.5		304	257	53.5	76.7	40	4	116	265	211	224	297	3
	400	122	3200	9000	29440E	850	1600	72		350	278	77	107.1	59.4	5	122	295	217	234	337	4
220	300	48	690	3000	29244E	1300	2200	10	220	280	252	30	43.4	24.5	2	117	255	224.5	227	271	2
	360	85	2000	6300	29344E	1000	1700	33.5		326	274	55	77.7	41	4	125	285	229	240	316	3
	420	122	3350	9650	29444E	850	1500	75		371	300	77	107.4	58.5	6	132	315	238	254	358	5
240	340	60	799	3450	29248	1100	1800	16.5	240	330	283	19	57	30	2.1	130	290			308	2
	380	85	2040	6550	29348E	1000	1600	35.5		345	296	54	77.8	40.5	4	135	305	249	259	336	3
	440	122	3400	10200	29448E	850	1500	80		391	322	76	107.1	59	6	142	335	258	276	378	5
260	360	60	817	3650	29252	1100	1700	18.5	260	350	302	19	57	30	2.1	139	310			326	2
	420	95	2550	8300	29352E	850	1400	49		382	324	61	86.6	46	5	148	335	273	286	370	4
	480	132	4050	12900	29452E	750	1300	105		427	346	86	119	63	6	154	365	278	296	412	5
280	380	60	863	4000	29256	1000	1700	19.5	280	370	323	19	57	30	2.1	150	325			347	2
	440	95	2550	8650	29356E	850	1400	53		401	343	62	86.7	45.5	5	158	355	293	305	390	4
	520	145	4900	15300	29456E	670	1200	135		464	372	95	129.9	70	6	166	395	300	320	446	5
300	420	73	1070	4800	29260	900	1400	30.5	300	405	353	21	69	38	3	162	360			380	2.5
	480	109	3100	10600	2936OE	750	1200	75		434	372	70	98.9	51	5	168	385	313	329	423	4
	540	145	5000	16600	29460E	670	1200	140		485	392	95	130.3	70.5	6	175	415	319	340	465	5
320	440	73	1110	5100	29264	850	1400	33	320	430	372	21	69	38	3	172	380			400	2.5
	500	109	3350	11200	29364E	750	1200	78		454	391	68	97.8	53	5	180	405	332	347	442	4
	580	155	5700	19000	29464E	600	1100	175		520	422	102	139.4	74.5	7.5	191	450	344	367	500	6
340	460	73	1130	5400	29268	850	1300	33.5	340	445	395	21	69	37.5	3	183	400			422	2.5
	540	122	2710	11000	29368	600	1100	105		520	428	40.6	117	59.5	5	192	440			479	4
	620	170	6700	22400	29468E	560	1000	220		557	445	112	151.4	84	7.5	201	475	363	386	530	6
360	500	85	1460	6800	29272	750	1200	52	360	485	423	25	81	44	4	195	430			453	3
	560	122	2760	11600	29372	600	1100	110		540	448	40.5	117	59.5	5	202	460			500	4
	640	170	6200	21200	29472EM	560	950	230		580	474	63	164	83.5	7.5	210	495			550	6
380	520	85	1580	7650	29276	700	1100	53	380	505	441	27	81	42	4	202	450			473	3
	600	132	3340	14000	29376	530	1000	140		580	477	45	127	63.5	6	216	495			535	5
	670	175	6800	24000	29476EM	530	900	260		610	494	67	168	87.5	7.5	222	525			580	6
400	540	85	1610	8000	29280	700	1100	55.5	400	526	460	27	81	42.2	4	212	470			493	3
	620	132	3450	14600	29380	530	950	150		596	494	43	127	64	6	225	510			550	5
	710	185	7650	26500	29480EM	480	850	310		645	525	69	178	89.5	7.5	234	550			615	6
420	580	95	1990	9800	29284	630	1000	75.5	420	564	489	30	91	46	4	225	500			525	4
	650	140	3740	16000	29384	500	900	170		626	520	49	135	67.5	6	235	535			580	5
	730	185	7800	27500	29484EM	480	850	325		665	545	70	178	90.5	7.5	244	575			635	6

440 mm-1600 mm Spherical Roller Thrust Bearings Specs

Basic Size			Basic load rating dynamic, static		Code	Speed Ratings		Mass	Dimensions								Shoulder and chamfer dimensions
Basic Size			Basic load rating dynamic, static		Code	Speed Ratings		Mass	Dimensions								Shoulder and chamfer dimensions
d	D	H	C	C。		Reference Speed	Limiting Speed		d	d₁	D₁	B	B₁	C	r_1.2min	S	d_amin	_Damax	r_amax
mm			kN		-	r/min		kg	mm								mm
440	600	95	2070	10400	29288	630	1000	78	440	585	508	30	91	46.5	5	235	520	545	4
	680	145	5200	19300	29388EM	530	850	180		626	540	49	140	70.5	6	249	560	605	5
	780	206	9000	32000	29488EM	430	750	410		710	577	77	199	101	9.5	257	605	675	8
460	620	95	2070	10600	29292	600	950	81	460	605	530	30	91	46	5	245	540	565	4
	710	150	4310	19000	29392	450	800	215		685	567	50	144	72.5	6	257	585	630	5
	800	206	9300	33500	29492EM	430	750	425		730	596	77	199	101.5	9.5	268	630	695	8
480	650	103	2350	11800	29296	560	900	98	480	635	556	33	99	53.5	5	259	570	595	4
	730	150	4370	19600	29396	450	800	220		705	591	51	144	73.5	6	270	610	655	5
	850	224	9550	39000	29496EM	340	670	550		770	625	88	216	108	9.5	280	660	735	8
500	670	103	2390	12500	292/500	560	900	100	500	654	574	33	99	53.5	5	268	585	615	4
	750	150	4490	20400	293/500	430	800	235		725	611	50	144	74	6	280	630	675	5
	870	224	9370	40000	294/50OEM	340	670	560		795	648	86	216	110	9.5	290	685	755	8
530	710	109	3110	15300	292/530EM	530	850	115	530	675	608	32	105	56	5	285	620	655	4
	800	160	5870	26500	293/530EM	400	750	270		741	641	55	154	81	7.5	295	665	715	6
	920	236	10500	44000	294/530EM	320	630	650		840	686	89	228	116	9.5	308	725	800	8
560	750	115	2990	16000	292/560	480	800	140	560	732	644	37	111	61	5	302	655	685	4
	850	175	6900	31000	293/560EM	360		360		790	677	63	169	86	7.5	320	710	765	6
	980	250	12000	51000	294/560EM	300	560	810		890	727	99	241	122	12	328	770	850	10
600	800	122	3740	18600	292/60OEM	450	700	170	600	760	688	39	117	60	5	321	700	735	4
	900	180	7530	34500	293/600	340		405		840	720	65	174	89	7.5	340	755	810	6
	1030	258	13100	56000	294/600EM	280	530	845		940	769	99	249	128	12	349	815	900	10
630	850	132	4770	23600	292/630EM	400	670	210	630	810	723	50	127	62	6	338	740	780	5
	950	190	8450	38000	293/630EM	320	600	485		880	761	68	188	92	9.5	359	795	860	8
	1090	280	14400	62000	294/630EM	260	500	1040		995	815	107	270	137	12	365	860	950	10
670	900	140	4200	22800	292/670	380		255	670	880	773	45	135	73	6	361	790	825	5
	1000	200	8970	41500	293/670EM	300		545		935	804	73	193	98	9.5	379	840	900	8
	1150	290	15400	68000	294/670EM	240	450	1210		1045	864	110	280	141	15	387	905	1000	12
710	950	145	5230	27000	292/71OEM	360		290	710	900	815	46	140	71	6	380	830	875	5
	1060	212	9950	45500	293/710EM	280	500	610		985	855	74	205	103	9.5	404	890	960	8
	1220	308	17600	76500	294/71OEF	220	430	1500		1110	917	117	298	149	15	415	965	1070	12
750	1000	150	6100	31000	292/750EM			325	750	950	858	50	144	74	6	409	880	925	5
	1120	224	9370	45000	293/750			770		1086	910	76	216	109	9.5	415	935	1000	8
	1280	315	18700	85000	294/750EF	200	400	1650		1170	964	121	305	153	15	436	1015	1120	12
800	1060	155	6560	34500	292/80OEM	320	530	380	800	1010	911	52	149	77	7.5	434	935	980	6
	1180	230	11300	55000	293/80OEM	240	450	810		1099	958	78	222	117	9.5	440	995	1060	8
	1360	335	20200	93000	294/800EF	190	360	2030		1250	1034	123	324	165	15	462	1080	1185	12
850	1120	160	6730	36000	292/85OEM			425	850	1060	967	47	154	82	7.5	455	980	1030	6
850	1440	354	23900	108000	294/85OEF	170	340	2390	850	1315	1077	142	342	172	15	507	1160	1270	12
900	1520	372	26700	122000	294/90OEF	160	300	2650	900	1394	1137	147	360	186	15	518	1215	1320	12
950	1250	180	8280	45500	292/950EM			600	950	1185	1081	58	174	88	7.5	507	1095	1155	6
950	1600	390	28200	132000	294/950EF	140	280	3070	950	1470	1209	153	377	191	15	546	1275	1400	12
1000	1670	402	31100	140000	294/10OOEF	130	260	3390	1000	1531	1270	154.9	389	190	15	599	1350	1490	12
1060	1400	206	10500	58500	292/1060EF			860	1060	1325	1211	66	199	100	9.5	566	1225	1290	8
1060	1770	426	33400	156000	294/1060EF	120	240	4280	1060	1615	1349	192	412	207	15	610	1410	1555	12
1180	1520	206	10900	64000	292/1180EF			950	1180	1450	1331	83	199	101	9.5	625	1345	1410	8
1250	1800	330	24800	129000	293/1250EF			2770	1250	1685	1474	147	319	161	12	698	1540	1640	10
1600	2280	408	36800	200000	293/1600EF			5375	1600	2130	1885	166	395	195	19	894	1955	2090	15

FAQs of Spherical Roller Thrust Bearings

What is the difference between a roller bearing and a ball bearing?

The bearing structure is divided by rolling elements shape. If bearings contain rollers, we name them roller bearings, if bearings contain balls, we name them ball bearings. Roller bearings can carry a higher load. Roller bearings include cylindrical roller bearings, tapered roller bearings, spherical roller bearings, spherical roller thrust bearings, cylindrical roller thrust bearings, tapered roller thrust bearings, needle roller bearings, and needle roller thrust bearings.

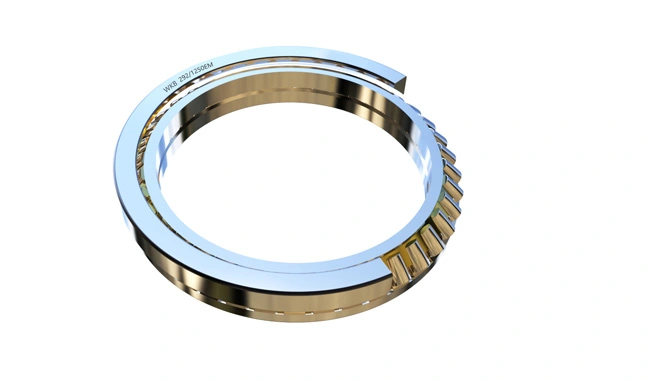

What is the advantage of spherical roller bearing?
- Strong load carrying capacity: Due to the presence of rolling elements, spherical roller bearings have greater load carrying capacity compared to other structural bearings, and can maintain stable operation under high-speed and heavy load conditions.
- Wide applicability: Spherical roller bearings have strong adaptability and can be used in harsh environments such as high temperature, high speed, and high load.
- Adjustable centrality: By adjusting the central axis position of the bearing, it can adapt to different working states and load conditions.
- Easy installation: The spherical roller bearing adopts a symmetrical type, which can rotate in any direction during installation, thus greatly simplifying the difficulty of installation.
Spherical roller bearings are widely used in industries such as mining, metallurgy, papermaking, cement, ships, textiles, etc.
