Four-Row Cylindrical Roller Bearings

Name: Four-Row Cylindrical Roller Bearings
Brand: WKB (Wafangdian) Bearing Technology Co., Ltd.
Price: 150-800 USD
Rating: 4.8 (50 reviews)

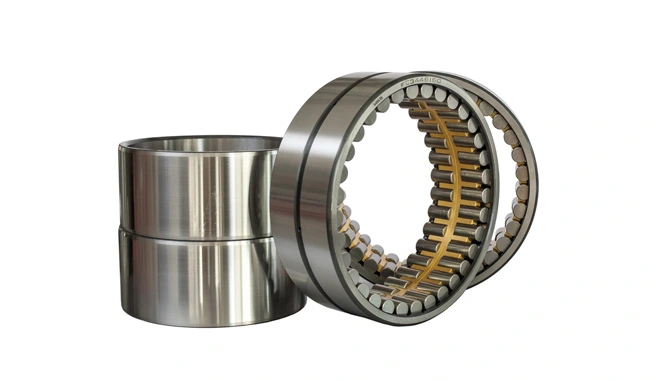

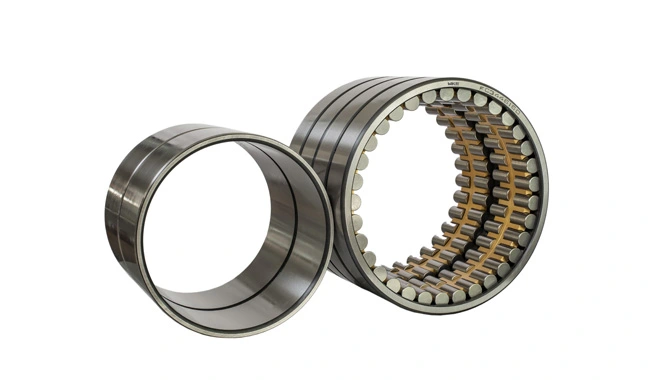

Four-row cylindrical roller bearings consist of four rows of rollers arranged alternately, allowing them to accommodate heavy radial and axial loads. They're used in heavy machinery like rolling mills. Their design ensures high load capacity and stability, making them suitable for demanding industrial applications requiring robust performance and durability.

Features of Four-Row Cylindrical Roller Bearings

High Load Capacity: Four-row cylindrical roller bearings are designed to handle extremely heavy radial and axial loads due to their multiple rows of rollers and enhanced load-carrying capability.
Axial Rigidity: These bearings provide excellent axial rigidity and support, making them suitable for applications with high thrust loads and moments, such as rolling mills and gearboxes.
Precision and Accuracy: Four-row cylindrical roller bearings are engineered for precise operation, maintaining tight tolerances and minimizing deflection under heavy loads, ensuring smooth and efficient performance.
Modular Design: Their modular construction facilitates installation and maintenance, with separable components that allow easier assembly and disassembly, reducing downtime and maintenance costs in industrial settings.

Products

Specs of Four-Row Cylindrical Roller Bearings

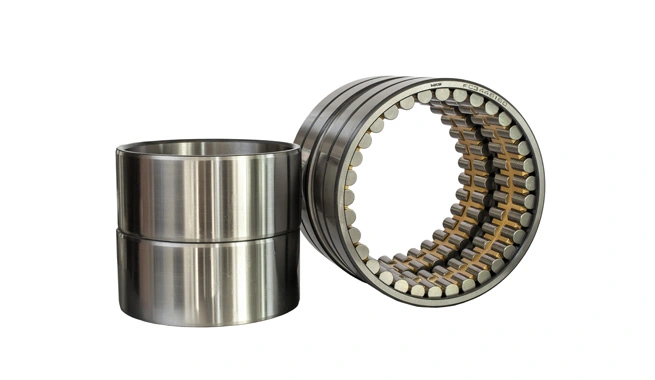

Four Row Cylindrical Roller Bearing

90 mm-200 mm Four-Row Cylindrical Roller Bearings Specs

Basic Size						Code	Basic load rating dynamic, static		Mass	Other brands and models
d	D	B	Fw	r_1.2min	r_3.4min		C	C。		SKF	FAG	NTN	NSK	KOYO
mm						-	kN		kg	mm
90	140	70	105	1.5	1.1	FC182870	239	385	4.2
90	140	74	105	1.5	1.1	FC182874	244	496	4.5
100	140	70	111	1.5	1.1	FC202870	298	606	3.3
	140	104	111	1.5.	1.1	FC2028104	345	820	5.1				400RV1401
	150	106	113	1.5	1.1	FC2030106	470	854	6.8
110	150	80	122	1.5	1.5	FC223080	252	602	4.1
	150	120	122	1.5	1.5	FC2230120	349	801	6.2
	170	90	127	2	2	FC223490	379	752	7.9					22FC1790
	170	120	127	2	2	FC22341 20	523	1801	10.3
120	180	92	137	2	2	FC243692	527	751	8.4			4R2437
	180	105	135	2	2	FC2436105	550	1200	9.6			4R2438
	180	120	136	2	2	FC2436120	477	1061	11.2
130	200	104	150	2	2	FC2640104	445	995	12.5			4R2628
130	200	125	149	2	2	FC2640125	598	1176	14.9
140	190	119	154	2	2	FC2838119	704	1248	9.9			4R2832
	210	100	158	2	2	FC2842100	715	1248	12.8
	210	106	158	2	2	FC2842106	715	1248	13.5
	210	125	158	2	2	FC2842125	715	1265	15.7
	210	155	158	2	2	FC2842155	715	1331	19.8
145	210	155	166	2	2	FC2942155	735	1560	18.9	31 4625	511605	4R2906
145	225	156	169	2	2	FC2945156	835	1820	24.1	31 3924A	538522	4R2904	145RV2201	313924
150	210	120	166	2	2	FC3042120	587	1380	12.5
	220	120	167	2	2	FC3044120	702	1193	15.5
	220	150	168	2	2	FC3044150	701	1 700	19.3			4R3031	150RV2201	30FCC22150A
	225	120	169	2	2	FC3045120	702	1408	16.2
	225	150	169	2	2	FC30451 50	801	1670	20.9
	230	130	174	2	2	FC3046130	670	955	19.7			4R3029
	230	150	177	2	2	FC30461 50	950	1790	22.8
	230	156	174	2	2	FC3046156	825	1810	24	313891A	508955	4R3040	150RV2302	313891-1
160	220	180	177	2.1	2.1	FC3244180	940	2560	20.2			4R3040
	225	120	17 7	2.1	2.1	FC3245120	639	1 340	14.9			4R3224
	230	130	178	2.1	2.1	FC3246130	781	1320	17.7				160VR2301
	230	130	180	2.1	2.1	FC3246130E	781	1340	17	314190	541515	4R3226
	230	168	177	2.1	2.1	FC3246168	895	2200	22.8
	230	168	179	2.1	2.1	FC3246168E	1050	21 70	23.5	315189A	510150	4R3232
	230	168	180	2.1	2.1	FC3246168E1	895	2200	23.5				160RV2302	32FC23170A
	230	180	178	2.1	2.1	FC3246180	838	2270	24.6					32FC23180
	240	120	183	2.1	2.1	FC3248120	635	1301	18.6
	240	124	183	2.1	2.1	FC3248124	635	1301	19.6
	240	168	183	2.1	2.1	FC3248168	1042	2310	26.7
	240	170	183	2.1	2.1	FC3248170	980	2290	27.8			4R3225
170	230	120	187	2	2	FC3446120	819	1 580	14.3			4R3426
	230	130	188.5	2	2	FC3446130	670	1400	15.6	313673
	230	180	186	2.1	2.1	FC3446180	1034	2035	24.5
	240	130	190	2.1	2.1	FC3448130	913	1830	18.7	BC4B635122
	240	156	189	2.1	2.1	FC34481 56	905	2170	22.2			4R3429
	250	150	192	2.1	2.1	FC3450150	720	1716	25
	250	168	192	2.1	2.1	FC3450168	1040	2320	28				170RV2502	34FC25168
	250	170	192	2.1	2.1	FC3450170	1170	2428	28.6					34FC25170
	255	180	193	2.1	2.1	FC3451180	1380	2500	30.5			4R3425	170RV2502
170 (cont.)	260	120	195	2.1	2.1	FC3452120	860	1752	23
	260	150	195	2.1	2.1	FC3452150	883	1803	28.8
	260	170	195	2.1	2.1	FC3452170	1034	2096	32.7
	260	192	195	2.1	2.1	FC3452192	1087	2240	36.9
	260	225	196	2.1	2.1	FC3452225	1650	3310	43.3	313587B	505470	4R3431
180	250	120	200	2.1	2.1	FC3650120	610	1578	18
	250	130	200	2.1	2.1	FC3650130	716	1922	19.5
	250	156	198	2.1	2.1	FC3650156	880	2230	23.4
	250	156	200	2.1	2.1	SFC3650156	880	2230	22.8			4R3625	180RV2501	36FC25156A
	260	120	202	2.1	2.1	FC3652120	735	1577	21
	260	124	202	2.1	2.1	FC3652124	735	1577	21.7
	260	156	198	2.1	2.1	FC3652156	835	2200	27.3
	260	160	202	2.1	2.1	FC3652160	880	2230	28.4
	260	168	202	2.1	2.1	FC3652168	990	2300	29.5	313812	507536	4R3628	180RV2601	3138 12W
	260	180	202	2.1	2.1	FC3652180	1000	2600	33.2
	265	180	204	2.1	2.1	FC3653180	1040	2649	33.8
	280	180	206	2.1	2.1	FC3656180E	1287	2995	41		524372
	280	180	207	2.1	2.1	FC3656180	1287	2995	41.4
190	260	168	208	2.1	2.1	FC3852168	1140	2520	24.9
	260	168	212	2.1	2.1	FC3852168E	1140	2600	27	313651	507735	4R3820	190RV2601	38FC26168-1
	265	124	213	2.1	2.1	FC3853124	819	1921	21
	270	166	21 2	2.1	2.1	FC3854166	1034	2460	30.4
	270	168	212	2.1	2.1	FC3854168	1034	2460	30.8			4R3818
	270	170	213	2.1	2.1	FC3854170	1240	2910	31.7	314 199B	508657	4R3821	190RV2701	314199
	270	200	212	2.1	2.1	FC3854200	1510	3310	37.5	314049A	510199	4R3823
	280	200	214	2.1	2.1	FC3856200	1720	3370	42
200	270	120	222	2.1	2.1	FC4054120	617	1630	19.6
	270	170	222	2.1	2.1	FC4054170	1170	2580	28.5	314553		4R4039
	280	170	222	2.1	2.1	FC4056170	1380	2870	32.5

200(cont.) mm-300 mm Four-Row Cylindrical Roller Bearings Specs

Basic Size						Code	Basic load rating dynamic, static		Mass	Other brands and models
d	D	B	Fw	r_1.2min	r_3.4min		C	C。		SKF	FAG	NTN	NSK	KOYO
mm						-	kN		kg	mm
200 (cont.)	280	188	222	2.1	2.1	FC4056188	1210	2720	36
	280	200	222	2.1	2.1	FC4056200E	1510	3310	39	313893	508726	4R4037		313893-1
	280	200	224	2.1	2.1	FC4056200	1210	3200	39.4				200RV2801
	290	130	226	2.1	2.1	FC4058130	941	1916	38.5
	290	192	226	2.1	2.1	FC4058192	1 540	3310	42.8	313811	512580	4R4041	200RV2901	313811
	290	202	226	2.1	2.1	FC4058202	1540	3310	43.4
	310	130	229	2.1	2.1	FC4062130	11 13	2254	36.3
	310	200	229	2.1	2.1	FC4062200	1573	3625	55.8		524373
	310	230	229	2.1	2.1	FC4062230	2010	3750	64	313639/VJ202
	320	216	231	2.1	2.1	FC4064216	1794	3404	67			4R4028
210	290	192	234	2.1	2.1	FC4258192	1185	3245	38.2
	290	192	236	2.1	2.1	FC4258192E	1450	3400	41	313646	507628	4R4206	210RV2901
	300	170	234	2.1	2.1	FC4260170	1215	2845	38.8
	300	210	234	2.1	2.1	FC4260210	1300	3209	47.9
220	290	192	239	2.1	2.1	FC4458192	1190	3350	33.8			4R4413
	300	160	245	2.1	2.1	FC4460160	1000	2590	32.8			4R4419
	300	190	240	2.1	2.1	FC4460190	1219	3323	39.3
	300	192	242	2.1	2.1	FC4460192	1219	3323	39.7
	300	200	240	2.1	2.1	FCD4460200	1790	3900	41.0	BC2B322341/HB1VJ202
	310	192	246	2.1	2.1	FC4462157	1300	3400	39.5
	310	190	246	2.1	2.1	FC4462190	1320	3450	45
	310	192	246	2.1	2.1	FC4462192	1680	3650	46	313839	507333	4R4426	220RV3101
	310	192	247	2.1	2.1	FC4462192E	1320	3450	46
	310	204	247	2.1	2.1	FCD4462204	1420	3750	49.8			4R4425
	310	215	242	2.1	2.1	FCD4462215	1 590	3950	51.5			4R4420
	310	225	244	2.1	2.1	FCD4462225E	1940	4300	54.5	313894B	514461
	310	225	245	2.1	2.1	FCD4462225	1480	3950	54.9			4R4416	220RV3102	44FC31225
	310	265	245	2.1	2.1	FCD4462265	1690	4700	63.5			4R4430
	320	160	245	2.1	2.1	FC4464160	1190	2550	46.5			4R4428
	320	192	246	2.1	2.1	FC4464192	1600	3440	51.5
220 (cont.)	320	210	246	2.1	2.1	FCD4464210	1820	3600	61		509216
	320	210	248	2.1	2.1	FCD4464210E	1550	3650	56			4R4429	220RV3201	44FC32210-1
	330	230	249	2.1	2.1	FCD4466230	2050	4000	68.5	314889/VJ202	541452
	340	192	246	2.1	2.1	FC4468192	1820	3600	64.2
	340	210	250	2.1	2.1	FCD4468210	1909	3846	70.2
	340	290	250	2.1	2.1	FCD4468290	2980	5010	96.3		525147
	345	210	250	2.1	2.1	FCD4469210	1909	3846	73.8
230	330	170	260	2.1	2.1	FC4666170	1140	2970	47.4
	330	206	258	2.1	2.1	FC4666206E	1520	3800	58.6			4R4614
	330	206	260	2.1	2.1	FC4666206	1870	4000	58	313824	508727		230RV3301	313824
	340	260	261	2.1	2.1	FCD4668260	2050	5100	81			4R4611	230RV3401	46FC34260
	365	250	266	2.1	2.1	FCD4673250	2640	4900	100	313581A	529113
240	330	180	265	2.1	2.1	FC4866180	1720	3800	49.5	635194	504547
	330	220	264	2.1	2.1	FCD4866220	1639	4340	56.4
	330	220	270	2.1	2.1	FCD4866220E	1720	4300	58	313921	508368	4R4811	240RV3301	312943/1YD
	340	192	268	2.1	2.1	FC4868192	1474	3582	55.4
	340	220	268	2.1	2.1	FCD4868220	1670	4200	71
	350	220	270	2.1	2.1	FCD4870220	1576	4073	71
	360	220	272	2.1	2.1	FCD4872220E	1912	4374	78.8
	360	220	274	2.1	2.1	FCD4872220	1760	4050	79.6			4R4807
250	340	170	274	3	3	FC5068170	1392	3488	45
	340	220	274	3	3	FC5068220	1329	3123	52.8
	340	230	270	3	3	FCD5068230	1700	4350	65.0
	350	220	274	3	3	FCD5070220E	1700	4350	58
	350	220	278	3	3	FC5070220	1700	4350	65			4R5008	250RV3501	50FC35220
	350	230	278	3	3	FCD5070230	1700	4350	68.7
	360	220	282	3	3	FC5072220	1700	4240	73
260	360	192	288	3	3	FC5272192	1609	3874	60
	360	204	287	3	3	FC5272204	1980	4400	64.5	314997/ V202
	360	230	292	3	3	FC5272230	1980	4650	73.5	BC4B320956
	360	260	287	3	3	FCD5272260	2300	5320	80.0					52FC36260
	370	192	291	3	3	FC5274192	1670	4012	66
	370	200	292	3	3	FC5274200	1771	4120	68.9
	370	220	292	3	3	FC5274220	2160	4650	76.5	313823	507336	4R5217	260RV3701	313823
	370	230	292	3	3	FC5274230	1760	4450	79.3
	380	220	292	3	3	FC5276220	2104	4900	85
	380	280	294	3	3	FCD5276280E	2420	6250	108			4R5213	260RV38301
	380	280	295	3	3	FCD5276280	2720	6250	108
	400	290	296	3	3	FCD5280290	3520	7100	135	313427B	518214
	400	335	294	3	3	FCD5280335	3750	7340	149					52FC40335W
265	370	234	300	3	3	FCD5374234	2240	5400	80	313922	517423
270	380	230	298	3	3	FC5476230	2000	5050	81.8				270RV3801
	380	275	298	3	3	FCD5476275E	3080	6990	97.8
	380	275	300	3	3	FCD5476275.	3080	6990	101.3
	390	220	306	3	3	FC5478220	1800	4803	86.7
	390	240	298	3	3	FCD5478240	2236	5330	94
	400	220	305	3	3	FC5480220	1822	4600	95.3
280	375	200	307	3	3	FC5675200	1500	4310	63.5
	380	170	306	3	3	FC5676170	1710	3590	55.0					56FC38170W
	380	192	310	3	3	FC5676192	1560	4580	64.6
	380	290	308.5	3	3	FCD5678290	2750	6950	75	BC4-0001
	390	220	312	3	3	FC5678220	2240	5000	81.5	313822	507339	4R5611	280RV3901	313822
	390	240	312	3	3	FC5678240	2008	5331	90
	390	275	308	3	3	FCD5678275	2424	6350	105	314719C	527104	4R5612
	390	275	312	3	3	FCD5678275Y	2010	5330	105		513729A
280 (cont.)	400	285	316	3	3	FCD5680285	3140	7350	120	314070/VJ202
	410	300	313	3	3	FCD5682300	3520	7450	133.9	314897/VJ202
	420	280	318	3	3	FCD5684280	2945	7212	136.5
	420	300	319	3	3	FCD5684300	3410	7180	150	313487			280RV4201
290	390	190	316	4	4	FC5878190	2050	4550	67	635195
	390	234	320	4	4	FC5878234	1990	5400	79.6
	400	180	320	4	4	FC5880180	2189	5385	68
	410	240	320	4	4	FC5882240	2340	5600	102.3			4R5806
	420	300	327	4	4	FCD5884300	2790	7369	141			4R5805	290RV4201
	440	310	328	4	4	FCD5888310	4300	9700	170		517796
300	400	300	328	4	4	FCD6080300	2330	6900	104			E-4R6014	300RV4021
	420	180	332	4	4	FCD6084180	2200	6780	92.4
	420	218	332	4	4	FC6084218	2014	4956	93.7
	420	240	332	4	4	FC6084240	2264	5644	103				300RV4201
	420	240	334	4	4	SFC6084240	2020	5450	106			E-4R6017
	420	300	332	4	4	FCD6084300	3250	7270	130	314484D	560840	E-4R6020		60FC42300W
	460	270	344	4	4	FCD6092270	2670	5800	162			E-4R6019
	460	350	341	4	4	FCD6092350	5500	9700	250		517795

310 mm-480(cont.) mm Four-Row Cylindrical Roller Bearings Specs

Basic Size						Code	Basic load rating dynamic, static		Mass	Other brands and models
d	D	B	Fw	r_1.2min	r_3.4min		C	C。		SKF	FAG	NTN	NSK	KOYO
mm						-	kN		kg	mm
310	430	240	344.5	4	4	FC6286240	2244	5950	107			E-4R6202	310RV4301
320	440	240	351	4	4	FC6488240	2169	5051	112.9
	440	286	350	4	4	FCD6488286	6900	8564	142
	440	300	351	4	4	FCD6488300	2193	5364	142		537046
	450	180	355	4	4	FC6490180	2193	5364	90.1
	450	240	354	4	4	FC6490240	2320	5750	125
	450	240	355	4	4	SFC6490240	2320	5750	116				320RV4502
	460	300	357	4	4	FCD6492300	2567	6087	163
	460	240	364	4	4	FCD6492240	2920	7200	140	BC4B322216/VJ202
	460	280	357	4	4	FCD6492280	3100	7300	159
320 (cont.)	460	340	360	4	4	FCD6492340	3400	9450	178			E-4R6412
	470	350	357	4	4	FCD6494350	5200	9780	225		532592
	480	350	364	4	4	FCD6496350	4950	10800	235	314274B	541851
330	430	230	358	4	4	FC6686230	1986	5644	87.4
	440	200	360	4	4	FC6688200	1820	4850	83.6			E-4R6603
	460	340	365	4	4	FCD6692340	3650	3950	175	313445C	543447	E-4R6605	330RV4601
	460	340	364	4	4	FCD6692340E	3860	9150	174					66FC46340
340	450	250	364	4	4	FC6890250E	2400	6530	108.1
	450	250	371	4	4	FC6890250	2307	6585	124.4
	450	250	368	4	4	FC6890250E1	2750	6480	106					68FC45250BW
	460	260	370	4	4	FC6892260	3120	8120	124.8
	480	280	374	4	4	FC6896280	3120	8120	159.9
	480	350	378	4	4	FCD6896350	3575	10510	200.9	314485A	527634
	490	300	377	4	4	FCD6898300	3350	8300	187			E-4R6804
	500	370	385	4	4	FCD68100370	5230	11800	260	BC4B322261/HB1	517749
	560	380	396	4	4	FCD68120380	6820	1 2900	350	31 3404A	545171
350	500	380	389	4	4	FCDP70100380	3880	10800	242.3	314563/VJ202
	500	410	388	4	4	FCDP70100410	5830	13700	285	BC4B322777/HB1	532001
	520	300	401	4	4	FCDP70104300	4290	9000	220	BC2B319878/VJ202
360	480	290	392	4	4	FC7296290E	3470	8510	145
	480	290	394	4	4	FC7296290	2773	8075	146.2
	500	250	394	4	4	FC72100250	3580	7350	145	BC2B320075/VJ202				72FC48290
	510	370	399	4	4	FCD72102370	3756	10700	263
	510	400	397	4	4	FCDP72102400	4250	11500	262			E-4R7203
	520	380	405	4	4	FCDP7 2104380	3350	8300	266.2		562913
370	480	230	400	4	4	FC7496230	2100	5250	106			E-4R7405
370	480	250	401	4	4	FC7496250	2650	7422	116.3
370 (cont.)	520	380	409	4	4	FCDP 74104380	3100	7850	255	314486A	543975		370RV4801
	520	400	413	4	4	FCDP74104400	4740	11900	268					74FC52400W
	530	400	413	4	4	FCDP74106400	4430	10800	302
	540	400	415	4	4	FCDP74108400	4400	12400	311
380	500	290	414	4	4	FCD76100290	2862	8545	152.4
	520	280	417	4	4	FCD76104280	3400	9150	174			E-4R7605
	520	280	426	4	4	FCD76104280E	2860	7200	185	NNU4976B/DRW33
	520	290	418	4	4	FCD76104290	3069	8286	181.8
	520	300	416	4	4	FCD76104300	3550	9600	210			E-4R7607
	540	300	421	4	4	FCD76108300	5010	1 1000	220	31 3030A	541982
	540	340	424	4	4	FCD76108340	3952	10660	249
	540	400	422	4	4	FCDP76108400E	4830	14000	295	BC4B313511B	544794	E-4R7604
	540	400	424	4	4	FCDP76108400	4300	12000	280				380RV5401	76FC54400CW
	560	300	424	4	4	FCDP76112300	4950	9650	260	BC4B322189
	560	325	428	4	4	FCDP76112325	5230	10600	265	BC4B322264/HB1
390	510	290	424	4	4	FCD78102290	2905	7448	155.8
	540	320	431	4	4	FCD78108320	5280	12200	230	BC4B322498
	550	310	430	4	4	FCD78110310	5120	11200	240	313190A
	550	400	434	4	4	FCDP78110400	5130	12400	303				390RV5521	78FC55400AW
400	520	250	432	5	5	FCD80104250	2552	4748	137.3
	540	380	436	5	5	FCDP80108380	4550	9780	273		533426
	550	300	438	5	5	FCDP80110300E	4460	10400	214					80FC55300
	550	300	441	5	5	FCDP80110300	3525	9486	212.7
	560	400	446	5	5	FCDP80112400	4250	1 1800	303			E-4R8007
	560	410	445	5	5	FCDP80112410	5600	16500	313.3	313015DC	545614	E-4R8010	400RV5611	80FC56410
	590	440	450	5	5	FCDP80118440	7370	16600	415	31 5802/VJ202
410	560	400	450	5	5	FCDP82112400	6700	16600	300	316689	543736
410	600	440	450	5	5	FCDP82120440	7650	17300	425	313877B	545588
420	560	260	468	5	5	FCD841 12260	3740	9650	210	BC2B320074/VAJ202
	560	280	457	5	5	FCD84112280	3930	9140	191.1					84FC56280
	580	320	463	5	5	FCD841 16320	4680	10800	250	313555C/VJ202
	600	440	470	5	5	FCDP84120440	5768	17100	400	313513	545467
	620	300	473	5	5	FCD84124300	5200	1 5800.	416
	620	400	473	5	5	FCDP841 24400E	6930	15600	430	314391/VJ202
	620	400	478	5	5	FCDP84124400	5000	13400	410			E-4R8401
430	570	340	465	5	5	FCD86114340	6000	16800	260		562415
430	590	420	476	5	5	FCDP86118420	4450	13400	347				430RV5921
440	620	450	487	5	5	FCDP88124450E	7810	19600	427.2	314554B	545628	E-4R8801		88FC62450Al
	620	450	490	5	5	FCDP88124450	6350	19000	430				440RV6221
	650	355	494	5	5	FCD88130355	6700	14000	420	316899A
	660	340	492	5	5	FCDP88132340	6710	13700	430	635043
450	590	300	490	5	5	FCD90108300	3910	1 2000	245	315811E
	590	435	486	5	5	FCDP90108435	5150	14800	345		542648
	630	450	500	5	5	FCDP90126450	6820	1 6600.	433					90FC63450A
460	610	322	499	5	5	FCD92122322	4100	14600	290		526420
	620	320	500	5	5	FCD92124320	4800	16200	290		526026
	620	400	502	5	5	FCD92124400	6500	17000	343.9			E-4R9209
	650	355	509.5	5	5	FCD92130355	6270	14600	380	313031A
	650	424	510	5	5	FCDP92130424	7810	18300	450	315196A	513584A
	650	470	509	5	5	FCDP92130470	8800	22400	510	314560	518846	E-4R9216		92FC65470W
	660	475	508	5	5	FCDP92132475	11 000	35000	585		517693
	670	500	522	5	5	FCDP92134500	7650	22700	596				460RV6721
	700	540	519	5	5	FCDP92140540	12000	37500	785		529368
480	650	340	522	5	5	FCD96130340	6550	18400	320		525884
480	650	420	522	5	5	FCD96130420	8120	23700	440		525912
480 (cont.)	650	450	525	5	5	FCDP96130450	6560	21000	401.4	316690B	547660	E-4R9609
	680	420	528	5	5	FCD96136420	6720	19100	515	319320	533522
	680	500	528	5	5	FCDP96136500	7480	23000	605	316624
	680	500	532	5	5	FCDP96136500E	7616	23700	585	313516D	514445B	E-4R9604
	680	500	534	5	5	FCDP96136500E1	7700	23100	630				480RV6811	96FC68500
	700	500	534	5	5	FCDP96140500	9200	34200	675		54 125
	700	530	536	5	5	FCDP96140530	8300	31 500	720		52 399

500 mm-1000 mm Four-Row Cylindrical Roller Bearings Specs

Basic Size						Code	Basic load rating dynamic, static		Mass	Other brands and models
d	D	B	Fw	r_1.2min	r_3.4min		C	C。		SKF	FAG	NTN	NSK	KOYO
mm						-	kN		kg	mm
500	650	260	542	6	6	FCD100130260	4020	10200	225	319254/VJ202
	670	450	540	6	6	FCDP100134450E	5775	21300	463	316083A
	670	450	556	6	6	FCDP100134450	4500	11400	458		533023
	680	405	550	6	6	FCDP100136405	5400	16500	452.7
	680	450	550	6	6	FCDP100136450	5775	21300	500	BC4B316515	546335
	690	470	547	6	6	FCDP100138470	7650	22500	590			E-4R10016
	690	510	552	6	6	FCDP100138510	9010	24600	590			E-4R10006		100FC69510
	700	500	554	6	6	FCDP100140500	11600	38000	615		517692
	700	515	554	6	6	FCDP100140515	8150	25200	680			E-4R10011	500RV7021
	710	480	558	6	6	FCDP1 00142480	8800	21600	610	316968A	530488
	720	400	558	6	6	FCDP100144400	7920	17600	530	BC4B322066
	720	530	560	6	6	FCDP100144530	8550	25300	782				500RV7211
	720	530	568	6	6	FCDP100144530E	10800	28500	780	314441B	513378A	E-4R10015
510	670	320	554	6	6	FCD102134320	4550	13500	335			E-4R10201
	680	500	560	6	6	FCDP102136500	8970	26000	522	BC4B319411
	700	540	558	6	6	FCDP102140540	8300	25000	689			E-4R10202
	730	520	565	6	6	FCDP102146520E	13400	42000	745		514646
	730	520	569	6	6	FCDP102146520	9520	22000	750	BC4-8009/HB1
	760	550	570	6	6	FCDP102152550	12100	26500	950	BC4-8007/HB1	517690
520	700	540	564	6	6	FCDP104140540	8200	25500	658			E-4R10403
	735	535	574.5	6	6	FCDP104147535	9000	26600	740			E-4R10402	520RV7331	104FC74535
	750	530	576	6	6	FCDP104150530	13700	45000	810		541647
530	700	540	574	6	6	FCDP106140540	8150	26500	626			E-4R10603
	760	520	587	6	6	FCDP106152520E	11700	28500	775	314886A	537383
	760	520	590	6	6	FCDP106152520	9150	26700	800			E-4R10601
	780	500	591	6	6	FCDP106156500	9350	20400	805	31 5040/VJ202
	780	570	595	6	6	FCDP106156570	12500	30600	952					106FC78570
	780	570	601	6	6	FCDP106156570E	12800	32500	960	314517A	517689A	E-4R10602
	870	670	615	6	6	FCDP106174670	21200	67000	1680		543481
550	740	510	600	6	6	FCDP110148510	10100	27000	621.8	316691B	532843
	800	520	612	6	6	FCDP110160520E	11700	26500	895	316115/VJ202
	800	520	622	6	6	FCDP110160520	9450	27000	965			E-4R11001
	800	560	610	6	6	FCDP110160560	12100	28000	930	BC4B322719/HB1		517688
560	680	360	590	6	6	FCDP112136360	4650	16500	265			E-4R11202
	800	600	620	6	6	FCDP112160600	13000	33400	1010					112FC80600
	820	600	625	6	6	FCDP112164600	14200	34000	1080	BC4B322930/HA4		517687A
	820	630	625	6	6	FCDP112164630	14000	45200	1240		526708
570	815	594	628	6	6	FCDP114163594	1 1800	34500	1010			E-4R11402	570RV8111	114FC81594
570	830	600	635	6	6	FCDP114166600	17600	67800	1200		517686
580	850	640	648	6	6	FCDP116170640	18000	63400	1275		517685
600	820	550	660	6	6	FCD120164550	9400	30400	900		518780
	820	575	660	6	6	FCDP120164575	13000	36000	910	315175A
	870	540	672	6	6	FCDP120174540	12080	38300	1150	31 5068A
	870	640	672	6	6	FCDP120174640E	15700	40000	1340	315513	533259	E-4R12002
	870	640	682	6	6	FCDP120174640	15100	40000	1300	314317A	517684A	E-4R12001
	920	680	674	6	6	FCDP120184680	22800	67100	1800	315257A
610	820	430	665	6	6	FCDP122164430	9350	23600	652.4		526235
610	870	660	680	6	6	FCDP122174660	15200	40300	1400			E-4R12202	610RV8711	122FC87660
630	850	436	690	6	6	FCD126170436	7480	23600	720	BC2-8012/HB1VJ202
630	900	670	698	6	6	FCDP126180670	20800	63500	1525		517683
650	900	650	704	7.5	7.5	FCDP130180650	17200	41500	1260	BC4-8002/HA6
	920	670	723	7.5	7.5	FCDP130184670	13700	46500	1460	313007C	515194A	E-4R13005	650RV9211
	920	690	723	7.5	7.5	FCDP130184690	14300	46500	1550			E-4R13003
	920	690	724	7.5	7.5	FCDP130184690E	16700	45500	1490					130FC92690
660	820	440	702	7.5	7.5	FCD132164440	7480	22800	530	239509FA		E-4R13201
660	880	450	727	7.5	7.5	FCD132176450	7210	23600	785	313477/VJ202
670	950	700	750	7.5	7.5	FCDP134190700	14500	47300	1670
680	940	600	743	7.5	7.5	FCDP136188600	13800	53400	1260		533683
680	980	640	760	7.5	7.5	FCDP136196640	17200	44000	1590	313154C	524229
690	980	715	767.5	7.5	7.5	FCDP138196715	1 5840	51300	1780	31 3008A	517681	E-4R13802	690RV9831
690	980	750	766	7.5	7.5	FCDP138196750	18900	50800	1850					138FC98750
700	930	620	763	7.5	7.5	FCD140186620	12900	43000	1197	316967	530487	E-4R14003	700RV9311
700	980	600	774	7.5	7.5	FCD140196600	17800	48200	1680					140FC98700
710	1000	715	787.5	7.5	7.5	FCDP142200715	16800	54500	1860	313403C	517680A	E-4R14205
730	940	500	780	7.5	7.5	FCD146188500	12300	42500	872		526447
	960	620	790	7.5	7.5	FCDP146192620	15400	45000	1220	31 5982	525438
	1030	750	809	7.5	7.5	FCDP146206750	20900	58500	2040	314518B	517679
750	1000	500	816	7.5	7.5	FCD1 50200500	12300	33500	1150	314420/VJ202	524881A
750	1000	670	813	7.5	7.5	FCDP150200670	17600	50000	1480	315973	524881A
780	1070	780	853	7.5	7.5	FCDP156214780	22400	61000	2300	BC4-8015/HB1	540088

800	1080	700	870	7.5	7.5	FCDP160216700	16500	55000	1950			E-4R16004
	1080	700	878	7.5	7.5	FCDP160216700E	19800	58500	1950	315599A	526169
	1080	750	880	7.5	7.5	FCDP160216750	18400	55000	2050			E-4R16005	800RV1032	160FC108750
	1150	850	905	7.5	7.5	FCDP160230850	21000	76000	2850
820	1130	800	903	7.5	7.5	FCDP164226800	24200	68000	2540	BC4B320455		E-4R16406
	1160	840 .	910	7.5	7.5	FCDP164232840	21600	71000	2930			E-4R16403
	1160	840	911	7.5	7.5	FCDP164232840E	21900	71500	2900				800RV1121
850	1150	650	941	7.5	7.5	FCD170230650	15700	51000	1980			E-4R17001
	1150	800	930	7.5	7.5	FCDP170230800	19700	71000	2430			E-4R17003
	1150	840	928	7.5	7.5	FCDP170230840	25500	75000	2570	315826A	545636
	1180	650	945	7.5	7.5	FCD170236650	17100	54500	2270			E-4R17004
	1180	850	928	7.5	7.5	FCDP170236850E	24100	78500	2970			E-4R17002
	1180	850	940	7.5	7.5	FCDP170236850	21100	72000	2850				850RV1111
	1220	90	940	7.5	7.5	FCDP170244900	28000	82400	3720		523397
900	1220	840	989	7.5	7.5	FCDP180244840	26400	80000	3060	316043	527048
900	1280	930	1000	7.5	7.5	FCDP180256930	33000	93000	4080	313528C	541812
950	1300	850	1044	7.5	7.5	FCDP190260850	27200	91100	3500
	1360	975	1075	7.5	7.5	FCDP190272975	34000	100000	4895	BC4B319862
	1360	1000	1075	7.5	7.5	FCDP1902721000	37500	105000	5013	314520C
980	1310	880	1061.7	7.5	7.5	FCDP196262880	28500	86500	3300	319303
1000	1360	880	1101	7.5	7.5	FCDP200272800	27000	82800	3560	316234A
