CARB Toroidal Roller Bearings utilize a non-locating, self-aligning design with cylindrical and tapered bore options. These bearings offer high load capacity, compensate for shaft misalignment, and accommodate axial displacement. Ideal for industrial applications, they enhance operational reliability while minimizing friction, making them suitable for diverse mechanical systems.
Self-Alignment: CARB Toroidal Roller Bearings have a self-aligning design that accommodates misalignment, reducing stress and wear in applications.
High Load Capacity: These bearings offer exceptional load-carrying capacity due to their optimized roller geometry and unique design.
Axial Displacement: CARB roller bearing can accommodate axial displacement in both directions, allowing for flexible assembly and operation.
Reduced Friction: Their optimized internal geometry and low friction characteristics contribute to energy efficiency and extended bearing life, enhancing overall system performance.
ID | Radial Play | Common Group | C3 | C4 | C5 | ||||||
d | C2 | ||||||||||
more than | to | min | max | min | max | min | max | min | max | min | max |
mm | mm | ||||||||||
18 | 24 | 15 | 30 | 25 | 40 | 35 | 55 | 50 | 65 | 65 | 85 |
24 | 30 | 15 | 35 | 30 | 50 | 45 | 60 | 60 | 80 | 75 | 95 |
30 | 40 | 20 | 40 | 35 | 55 | 55 | 75 | 70 | 95 | 90 | 120 |
40 | 50 | 25 | 45 | 45 | 65 | 65 | 85 | 85 | 110 | 105 | 140 |
50 | 65 | 30 | 55 | 50 | 80 | 75 | 105 | 100 | 140 | 135 | 175 |
65 | 80 | 40 | 70 | 65 | 100 | 95 | 125 | 120 | 165 | 160 | 210 |
80 | 100 | 50 | 85 | 80 | 120 | 120 | 160 | 155 | 210 | 205 | 260 |
100 | 120 | 60 | 100 | 100 | 145 | 140 | 190 | 185 | 245 | 240 | 310 |
1 20 | 140 | 75 | 120 | 115 | 170 | 165 | 215 | 215 | 280 | 280 | 350 |
140 | 160 | 85 | 140 | 135 | 195 | 195 | 260 | 250 | 325 | 320 | 400 |
160 | 180 | 95 | 155 | 150 | 220 | 215 | 280 | 280 | 365 | 360 | 450 |
180 | 200 | 105 | 175 | 170 | 240 | 235 | 310 | 305 | 395 | 390 | 495 |
200 | 225 | 115 | 190 | 185 | 265 | 260 | 340 | 335 | 435 | 430 | 545 |
225 | 250 | 125 | 205 | 200 | 285 | 280 | 370 | 360 | 480 | 475 | 605 |
250 | 280 | 135 | 225 | 220 | 310 | 305 | 410 | 405 | 520 | 515 | 655 |
280 | 315 | 150 | 240 | 235 | 330 | 330 | 435 | 430 | 570 | 570 | 715 |
315 | 355 | 160 | 260 | 255 | 360 | 360 | 485 | 480 | 620 | 620 | 790 |
355 | 400 | 175 | 280 | 280 | 395 | 395 | 530 | 525 | 675 | 675 | 850 |
400 | 450 | 190 | 310 | 305 | 435 | 435 | 580 | 575 | 745 | 745 | 930 |
450 | 500 | 205 | 335 | 335 | 475 | 475 | 635 | 630 | 815 | 810 | 1015 |
500 | 560 | 220 | 360 | 360 | 520 | 510 | 690 | 680 | 890 | 890 | 1110 |
560 | 630 | 240 | 400 | 390 | 570 | 560 | 760 | 750 | 980 | 970 | 1220 |
630 | 710 | 260 | 440 | 430 | 620 | 610 | 840 | 830 | 1080 | 1070 | 1340 |
710 | 800 | 300 | 500 | 490 | 680 | 680 | 920 | 920 | 1200 | 1200 | 1480 |
800 | 900 | 320 | 540 | 530 | 760 | 750 | 1020 | 1010 | 1330 | 1320 | 1660 |
900 | 1000 | 370 | 600 | 590 | 830 | 830 | 1120 | 1120 | 1460 | 1460 | 1830 |
1000 | 1120 | 410 | 660 | 660 | 930 | 930 | 1260 | 1260 | 1640 | 1640 | 2040 |
1120 | 1250 | 450 | 720 | 720 | 1020 | 1020 | 1380 | 1380 | 1800 | 1800 | 2240 |
1250 | 1400 | 490 | 800 | 800 | 1130 | 1130 | 1510 | 1510 | 1970 | 1970 | 2460 |
1400 | 1600 | 570 | 890 | 890 | 1250 | 1250 | 1680 | 1680 | 2200 | 2200 | 2740 |
1600 | 1800 | 650 | 1010 | 1010 | 1390 | 1390 | 1870 | 1870 | 2430 | 2430 | 3000 |
18 | 24 | 15 | 35 | 30 | 45 | 40 | 55 | 55 | 70 | 65 | 85 |
24 | 30 | 20 | 40 | 35 | 55 | 50 | 65 | 65 | 85 | 80 | 100 |
30 | 40 | 25 | 50 | 45 | 65 | 60 | 80 | 80 | 100 | 100 | 125 |
40 | 50 | 30 | 55 | 50 | 75 | 70 | 95 | 90 | 120 | 115 | 145 |
50 | 65 | 40 | 65 | 60 | 90 | 85 | 115 | 110 | 150 | 145 | 185 |
65 | 80 | 50 | 80 | 75 | 110 | 105 | 140 | 135 | 180 | 175 | 220 |
80 | 100 | 60 | 100 | 95 | 135 | 130 | 175 | 170 | 220 | 215 | 275 |
100 | 120 | 75 | 115 | 115 | 155 | 155 | 205 | 200 | 255 | 255 | 325 |
120 | 140 | 90 | 135 | 135 | 180 | 180 | 235 | 230 | 295 | 290 | 365 |
140 | 160 | 100 | 155 | 155 | 21 5 | 210 | 270 | 265 | 340 | 335 | 415 |
160 | 180 | 115 | 175 | 170 | 240 | 235 | 305 | 300 | 385 | 380 | 470 |
180 | 200 | 130 | 195 | 190 | 260 | 260 | 330 | 325 | 420 | 415 | 520 |
200 | 225 | 140 | 215 | 210 | 290 | 285 | 365 | 360 | 460 | 460 | 575 |
225 | 250 | 160 | 235 | 235 | 315 | 315 | 405 | 400 | 515 | 510 | 635 |
250 | 280 | 170 | 260 | 255 | 345 | 340 | 445 | 440 | 560 | 555 | 695 |
280 | 315 | 195 | 285 | 280 | 380 | 375 | 485 | 480 | 620 | 615 | 765 |
315 | 355 | 220 | 320 | 315 | 420 | 415 | 545 | 540 | 680 | 675 | 850 |
355 | 400 | 250 | 350 | 350 | 475 | 470 | 600 | 595 | 755 | 755 | 920 |
400 | 450 | 280 | 385 | 380 | 525 | 525 | 655 | 650 | 835 | 835 | 1005 |
450 | 500 | 305 | 435 | 435 | 575 | 575 | 735 | 730 | 915 | 910 | 1115 |
500 | 560 | 330 | 480 | 470 | 640 | 630 | 810 | 800 | 1010 | 1000 | 1230 |
560 | 630 | 380 | 530 | 530 | 710 | 700 | 890 | 890 | 1110 | 1110 | 1350 |
630 | 710 | 420 | 590 | 590 | 780 | 770 | 990 | 980 | 1230 | 1230 | 1490 |
710 | 800 | 480 | 680 | 670 | 860 | 860 | 1100 | 1100 | 1380 | 1380 | 1660 |
800 | 900 | 520 | 740 | 730 | 960 | 950 | 1220 | 1210 | 1530 | 1520 | 1860 |
900 | 1000 | 580 | 820 | 810 | 1040 | 1040 | 1340 | 1340 | 1670 | 1670 | 2050 |
1000 | 1120 | 640 | 900 | 890 | 1170 | 1160 | 1500 | 1490 | 1880 | 1870 | 2280 |
1120 | 1250 | 700 | 980 | 970 | 1280 | 1270 | 1640 | 1630 | 2060 | 2050 | 2500 |
1250 | 1400 | 770 | 1080 | 1080 | 1410 | 1410 | 1790 | 1780 | 2250 | 2250 | 2740 |
1400 | 1600 | 870 | 1200 | 1200 | 1550 | 1550 | 1990 | 1990 | 2500 | 2500 | 3050 |
1600 | 1800 | 950 | 1320 | 1320 | 1690 | 1690 | 2180 | 2180 | 2730 | 2730 | 3310 |

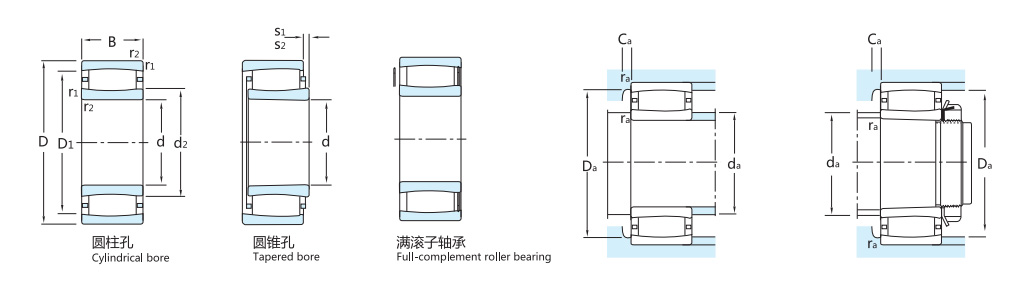

Basic Size | Basic load rating dynamic static | Fatigue load limit | Rated Speed | mass | Designation(Design) | Dimensions | Shoulder and chamfer dimensions | Calculation coefficient | ||||||||||||||||
d | D | B | C | C0 | Pu | Reference Speed | Limit Speed | Cylindrical bore | Tapered bore | d | d2~ | D1~ | r1.2min | S11)~ | S21)~ | damin | damax | Damin | Damax | Ca2)min | ramax | K1 | K2 | |
mm | kN | kN | r/min | kg | mm | - | ||||||||||||||||||
60 | 85 | 25 | 112 | 170 | 19.6 | 3000 | 0.46 | C4912V | C4912K30V | 60 | 68 | 78.2 | 1 | 5.5 | 2.3 | 64.6 | 72 | 80.4 | 1 | 0.107 | 0.108 | |||
85 | 34 | 150 | 240 | 26.5 | 2400 | 0.64 | C5912V | 66.8 | 76.5 | 1 | 6 | 2.8 | 64.6 | 62 | 80.4 | 1 | 0.097 | 0.11 | ||||||
85 | 45 | 190 | 335 | 39 | 1900 | 0.83 | C6912V | 68.7 | 77.5 | 1 | 7.9 | 4.7 | 64.6 | 72 | 80.4 | 1 | 0.108 | 0.096 | ||||||
110 | 28 | 143 | 156 | 18.3 | 5600 | 7500 | 1.1 | C2212TN9 | C2212KTN9 | 77.1 | 97.9 | 1.5 | 8.5 | 69 | 77.1 | 94.7 | 101 | 0.3 | 1.5 | 0.1 | 0.123 | |||
110 | 28 | 166 | 190 | 22.4 | 2800 | 1.15 | C2212V | C2212KV | 77.1 | 97.9 | 1.5 | 8.5 | 5.3 | 69 | 91 | 101 | 1.5 | 0.1 | 0.123 | |||||
65 | 90 | 25 | 116 | 180 | 20.8 | 2800 | 0.5 | C4913V | C4913K30V | 65 | 72.1 | 82.2 | 1 | 5.5 | 2.3 | 69.6 | 72 | 85.4 | 1 | 0.107 | 0.109 | |||
90 | 34 | 156 | 260 | 30.5 | 2200 | 0.68 | C5913V | 72.8 | 82.7 | 1 | 6 | 2.8 | 69.6 | 76 | 85.4 | 1 | 0.113 | 0.097 | ||||||
90 | 45 | 196 | 355 | 41.5 | 1800 | 0.9 | C6913V | 72.8 | 81.5 | 1 | 7.9 | 4.7 | 69.6 | 76 | 85.4 | 1 | 0.109 | 0.096 | ||||||
100 | 35 | 193 | 300 | 33.5 | 2400 | 1.05 | C4013V | C4013K30V | 75.5 | 88.4 | 1.1 | 6.4 | 1.2 | 71 | 81 | 94 | 1 | 0.11 | 0.1 . | |||||
120 | 31 | 180 | 180 | 21.2 | 5300 | 7500 | 1.45 | C2213TN9 | C2213KTN9 | 79 | 106 | 1.5 | 9.6 | 74 | 79 | 102 | 111 | 0.2 | 1.5 | 0.097 | 0.127 | |||
120 | 31 | 204 | 216 | 25.5 | 2400 | 1.5 | C2213V | C2213KV | 79 | 106 | 1.5 | 9.6 | 5.3 | 74 | 97 | 111 | 1.5 | 0.097 | 0.127 | |||||
70 | 100 | 30 | 163 | 163 | 28 | 2600 | 0.78 | C4914V | C4914K30V | 70 | 78 | 91 | 1 | 6 | 2.8 | 74.6 | 78 | 95.4 | 1 | 0.107 | 0.107 | |||
100 | 40 | 196 | 310 | 36.5 | 2000 | 1 | C5914V | 78.5 | 90.5 | 1 | 9.4 | 6.2 | 74.6 | 84 | 95.4 | 1 | 0.097 | 0.114 | ||||||
100 | 54 | 265 | 455 | 49 | 1700 | 1.4 | C6914V | 79.1 | 89.8 | 1 | 9 | 5.8 | 74.6 | 75 | 95.4 | 1 | 0.102 | 0.1 . | ||||||
125 | 31 | 186 | 196 | 22.8 | 5000 | 7000 | 1.5 | C2214TN9 | C2214KTN9 | 83.7 | 111 | 1.5 | 9.6 | 79 | 83.7 | 107 | 116 | 0.4 | 1.5 | 0.098 | 0.127 | |||
125 | 31 | 212 | 228 | 26.5 | 2400 | 1.55 | C2214V | C2214KV | 83.7 | 111 | 1.5 | 9.6 | 5.3 | 79 | 102 | 116 | 1.5 | 0.098 | 0.127 | |||||
150 | 51 | 405 | 430 | 49 | 3800 | 5000 | 4.3 | C2314V | C2314K | 91.4 | 130 | 2.1 | 9.1 | 82 | 106 | 119 | 138 | 2.2 | 2 | 0.11 | 0.099 | |||
75 | 105 | 30 | 166 | 255 | 30 | 2400 | 0.82 | C4915V | C4915K30V | 75 | 83.1 | 96.1 | 1 | 6 | 2.8 | 79.6 | 83 | 100 | 1 | 0.107 | 0.108 | |||
105 | 40 | 204 | 325 | 38 | 1900 | 1.1 | C5915V | 83.6 | 95.5 | 1 | 9.4 | 6.2 | 79.6 | 89 | 100 | 1 | 0.098 | 0.114 | ||||||
105 | 54 | 204 | 325 | 37.5 | 1900 | 1.4 | C6915V/VE240 | 83.6 | 95.5 | 1 | 9.2 | 9.2 | 79.6 | 88 | 100 | 1 | 0.073 | 0.154 | ||||||
115 | 40 | 208 | 345 | 40.5 | 2000 | 1.6 | C4015V | C4015K30V | 88.7 | 101 | 1.1 | 9.4 | 5.1 | 81 | 94 | 109 | 1 | 0.099 | 0.114 | |||||
130 | 31 | 196 | 208 | 24 | 4800 | 6700 | 1.6 | C2215 | C2215K | 88.5 | 116 | 1.5 | 9.6 | 84 | 98.3 | 106 | 121 | 1.2 | 1.5 | 0.099 | 0.127 | |||
130 | 31 | 220 | 240 | 28 | 2200 | 1.65 | C2215V | C2215KV | 88.5 | 116 | 1.5 | 9.6 | 5.3 | 84 | 107 | 121 | 1.5 | 0.099 | 0.127 | |||||
160 | 55 | 425 | 465 | 52 | 3600 | 4800 | 5.3 | C2315 | C2315K | 98.5 | 137 | 2.1 | 13.1 | 87 | 113 | 126 | 148 | 2.2 | 2 | 0.103 | 0.107. | |||
80 | 110 | 30 | 173 | 275 | 32 | 2200 | 0.86 | C4916V | C4916K30V | 80 | 88.1 | 102 | 1 | 6 | 1.7 | 84.6 | 94 | 105 | 1 | 0.112 | 0.107 | |||
110 | 40 | 208 | 345 | 40.5 | 1800 | 1.15 | C5916V | 88.7 | 101 | 1 | 9.4 | 5.1 | 84.6 | 94 | 105 | 1 | 0.099 | 0.114 | ||||||
140 | 33 | 220 | 250 | 28.5 | 4300 | 6000 | 2.05 | C2216 | C2216K | 98.1 | 125 | 2 | 9.1 | 91 | 107 | 116 | 129 | 1.2 | 2 | 0.104 | 0.121 | |||
140 | 33 | 255 | 305 | 34.5 | 2000 | 2.15 | C2216V | C2216KV | 98.1 | 125 | 2 | 9.1 | 4.8 | 91 | 116 | 129 | 2 | 0.104 | 0.121 | |||||
170 | 58 | 510 | 550 | 60 | 3400 | 4500 | 6.3 | C2316 | C2316K | 102 | 146 | 2.1 | 10.1 | 92 | 119 | 133 | 158 | 2.4 | 2 | 0.107 | 0.101 | |||
85 | 120 | 35 | 224 | 355 | 40.5 | 2000 | 1.3 | C4917V | C4917K30V | 85 | 94.5 | 109 | 1.1 | 6 | 1.7 | 91 | 94 | 114 | 1 | 0.1 | 0.114 | |||
120 | 46 | 275 | 465 | 52 | 1700 | 1.7 | C5917V | 95 | 109 | 1.1 | 8.9 | 4.6 | 91 | 91 | 114 | 1 | 0.098 | 0.109 | ||||||
150 | 36 | 275 | 320 | 35.5 | 4000 | 5600 | 2.65 | C2217 | C2217K | 103 | 133 | 2 | 7.1 | 96 | 114 | 123 | 139 | 1.3 | 2 | 0.114 | 0.105 | |||
150 | 36 | 315 | 390 | 43 | 1800 | 2.8 | C2217V | C2217KV | 103 | 133 | 2 | 7.1 | 1.7 | 96 | 120 | 139 | 2 | 0.114 | 0.105 | |||||
180 | 60 | 540 | 600 | 64 | 3200 | 4300 | 7.4 | C2317 | C2317K | 110 | 153 | 3 | 12.1 | 99 | 126 | 141 | 166 | 2.4 | 2.5 | 0.105 | 0.105 | |||
90 | 125 | 35 | 186 | 315 | 35.5 | 2000 | 1.3 | C4918V | C4918K30V | 90 | 102 | 113 | 1.1 | 11 | 6.7 | 96 | 100 | 119 | 1 | 0.125 | 0.098 | |||
125 | 46 | 224 | 400 | 45.5 . | 1600 | 1.75 | C5918V | 102 | 113 | 1.1 | 15.4 | 11.1 | 96 | 106 | 119 | 1 | 0.089 | 0.131 | ||||||
150 | 72 | 455 | 670 | 75 | 1100 | 5.1 | BSC-2039V | 109 | 131 | 2 | 19.7 | 19.7 | 101 | 121 | 139 | 2 | 0.087 | 0.123 | ||||||
160 | 40 | 325 | 380 | 41.5 | 3800 | 5300 | 3..3 | C2218 | C2218K | 111 | 144 | 2 | 9.5 | 101 | 124 | 133 | 149 | 1.4 | 2 | 0.104 | 0.117 | |||
160 | 40 | 365 | 440 | 48 | 1600 | 3.45 | C2218V | C2218KV | 111 | 144 | 2 | 9.5 | 4.1 | 101 | 131 | 149 | 2 | 0.104 | 0.117 | |||||
190 | 64 | 610 | 695 | 73.5 | 2800 | 4000 | 8.65 | C2318 | C2318K | 119 | 166 | 3 | 9.6 | 104 | 138 | 154 | 176 | 2 | 2.5 | 0.108 | 0.101 | |||
95 | 170 | 43 | 325 | 380 | 41.5 | 3800 | 5300 | 4.1 | C2219 | C2219K | 95 | 112 | 144 | 2.1 | 12.4 | 107 | 124 | 133 | 158 | 0 | 2 | 0.097 | 0.126 | |
200 | 67 | 610 | 695 | 73. 5 | 2800 | 4000 | 10 | C2319 | C2319K | 119 | 166 | 3 | 12.6 | 109 | 138 | 154 | 186 | 2.1 | 2.5 | 0.103 | 0.106 | |||
100 | 140 | 40 | 240 | 455 | 50 | 1800 | 2.05 | C4920V | C4920K30V | 100 | 114 | 126 | 1.1 | 9.4 | 5.1 | 106 | 118 | 134 | 1 | 0.105 | 0.114 | |||
140 | 54 | 375 | 640 | 68 | 1400 | 2.7 | C5920V | 110 | 127 | 1.1 | 9 | 4.7 | 106 | 107 | 134 | 1 | 0.103 | 0.105 | ||||||
150 | 50 | 355 | 530 | 58.5 | 1400 | 3.05 | C4020V | C4020K30V | 113 | 135 | 1.5 | 14 | 9.7 | 107 | 126 | 143 | 1.5 | 0.098 | 0.118 | |||||
150 | 67 | 510 | 865 | 95 | 1100 | 4.3 | C5020V | 114 | 136 | 1.5 | 9.3 | 5 | 107 | 127 | 143 | 1.5 | 0.112 | 0.094 | ||||||
165 | 52 | 475 | 655 | 71 | 1300 | 4.45 | C31 20V | 119 | 150 | 2 | 10.1 | 111 | 136 | 154 | 2 | 0.1 | 0.112 | |||||||
165 | 65 | 475 | 655 | 71 | 1300 | 5.3 | C41 20V/VE240 | C4120K30V/VE240 | 120 | 148 | 2 | 17.7 | 4.7 | 111 | 135 | 154 | 2 | 0.09 | 0.125 | |||||
170 | 65 | 475 | 655 | 71 | 1000 | 5.95 | BSC- 2034V | 120 | 148 | 2 | 17.7 | 17.7 | 111 | 135 | 159 | 2 | 0.09 | 0.125 | ||||||
180 | 46 | 415 | 465 | 49 | 3600 | 4800 | 4.95 | C2220 | C2220K | 118 | 157 | 2.1 | 10.1 | 17.7 | 112 | 134 | 146 | 168 | 0.9 | 2 | 0.108 | 0.11 | ||
215 | 73 | 800 | 880 | 90 | 2600 | 3600 | 12.5 | C2320 | C2320K | 126 | 185 | 3 | 11 | 114 | 150 | 168 | 201 | 3.2 | 2.5 | 0.113 | 0.096 | |||
110 | 170 | 45 | 355 | 480 | 51 | 3200 | 4500 | 3.6 | C3022 | C3022K | 110 | 128 | 156 | 2 | 9.5 | 120 | 138 | 149 | 160 | 0.9 | 2 | 0.112 | 0.107 | |
170 | 60 | 430 | 655 | 69.5 | 2600 | 3400 | 5.3 | C4022MB | C4022K30MB | 126 | 150 | 2 | 4.8 | 120 | 125 | 146 | 160 | 1.3 | 2 | 0 | 0.103 | |||
170 | 60 | 500 | 800 | 85 | 1 200 | 5.2 | C4022V | C4022K30V | 126 | 150 | 2 | 12 | 6.6 | 120 | 136 | 160 | 2 | 0.107 | 0.103 | |||||
180 | 69 | 670 | 1000 | 102 | 900 | 7.1 | C4122V | C4122K30V | 132 | 163 | 2 | 11.4 | 4.6 | 121 | 149 | 169 | 2 | 0.111 | 0.097 | |||||
200 | 53 | 530 | 620 | 64 | 3200 | 4300 | 7 | C2222 | C2222K | 132 | 176 | 2.1 | 11. 1 | 122 | 150 | 161 | 188 | 1.9 | 2 | 0.113 | 0.103 | |||
120 | 180 | 46 | 375 | 530 | 55 | 3000 | 4300 | 3.95 | C3024 | C3024K | 120 | 138 | 166 | 2 | 10.6 | 130 | 148 | 160 | 170 | 0.9 | 2 | 0.111 | 0.109 | |
180 | 46 | 430 | 640 | 65.5 | 1400 | 4.1 | C3024V | C3024KV | 138 | 166 | 2 | 10.6 | 3.8 | 130 | 154 | 170 | 2 | 0.111 | 0.109 | |||||
180 | 60 | 430 | 640 | 65. 5 | 1400 | 5.05 | C4024V/VE240 | C4024K302/VE240 | 139 | 164 | 2 | 7.8 | 17.8 | 130 | 152 | 170 | 2 | 0.085 | 0.142 | |||||
180 | 60 | 530 | 880 | 91.5 | 1100 | 5.55 | C4024V | C4024K30V | 140 | 164 | 2 | 12 | 5.2 | 130 | 152 | 170 | 2 | 0.109 | 0.103 | |||||
200 | 80 | 780 | 1120 | 114 | 750 | 10 | C4124V | C41 24K30V | 140 | 176 | 2 | 18 | 11.2 | 131 | 160 | 189 | 2 | 0.104 | 0.103 | |||||
215 | 58 | 610 | 710 | 71 | 2800 | 4000 | 8.65 | C2224 | C2224K | 144 | 191 | 2.1 | 13 | 132 | 163 | 142 | 203 | 1.1 | 2 | 0.104 | 0.113 | |||
215 | 76 | 750 | 980 | 98 | 2400 | 3200 | 12 | C3224 | C3224K | 149 | 190 | 2.1 | 17.1 | 132 | 162 | 179 | 203 | 2.4 | 2 | 0.103 | 0.108 | |||
130 | 200 | 52 | 390 | 585 | 58.5 | 2800 | 3800 | 5.9 | C3026 | C3026K | 130 | 153 | 180 | 2 | 16.5 | 140 | 162 | 175 | 190 | 1.1 | 2 | 0.101 | 0.123 | |
200 | 69 | 620 | 930 | 93 | 2200 | 2800 | 7.85 | C4026 | C4026K30 | 149 | 181 | 2 | 11.4 | 140 | 157 | 174 | 190 | 1.9 | 2 | 0.113 | 0.097 | |||
200 | 69 | 720 | 1120 | 112 | 850 | 8.15 | C4026V | C4026K30V | 149 | 181 | 2 | 11.4 | 4.6 | 140 | 167 | 190 | 2 | 0.113 | 0.097 | |||||
210 | 80 | 750 | 1110 | 110 | 850 | 10.5 | C4126V/VE240 | C4126K30V/VE240 | 153 | 191 | 2 | 9.7 | 9.7 | 141 | 174 | 199 | 2 | 0.09 | 0.126 | |||||
230 | 64 | 735 | 930 | 91.5 | 2800 | 3800 | 11.5 | C2226 | C2226K | 152 | 199 | 3 | 9.6 | 144 | 171 | 185 | 216 | 1.1 | 2.5 | 0.113 | 0.101 | |||
140 | 210 | 53 | 490 | 735 | 72 | 2600 | 3400 | 6.3 | C3028 | C3028K | 140 | 163 | 194 | 2 | 11 | 149 | 161 | 195 | 201 | 4.7 | 2 | 0.102 | 0.116 | |
210 | 69 | 750 | 1220 | 120 | 800 | 8.6 | C4028V | C4028K30V | 161 | 193 | 2 | 11.4 | 5.9 | 150 | 177 | 200 | 2 | 0.115 | 0.097 | |||||
225 | 85 | 780 | 1200 | 116 | 800 | 12.5 | C4128V/VE240 | C4128K30V/VE240 | 166 | 204 | 2.1 | 9.7 | 9.7 | 152 | 189 | 213 | 2 | 0.086 | 0.134 | |||||
250 | 68 | 830 | 1060 | 102 | 2400 | 3200 | 14 | C2228 | C2228K | 173 | 223 | 3 | 13.7 | 154 | 191 | 207 | 236 | 2.3 | 2.5 | 0.109 | 0.108 | |||
150 | 225 | 56 | 540 | 850 | 81.5 | 2400 | 3200 | 8.45 | C3030MB | C3030KMB | 150 | 173 | 204 | 2.1 | 8.7 | 161 | 172 | 198 | 214 | 1.3 | 2 | 0.108 | ||
225 | 75 | 780 | 1320 | 127 | 750 | 10.5 | C4030V | C4030K30V | 173 | 204 | 2.1 | 17.4 | 10.6 | 161 | 189 | 214 | 2 | 0.107 | 0.106 | |||||
250 | 80 | 880 | 1290 | 122 | 2000 | 2800 | 15.5 | C3130 | C3130K | 182 | 226 | 2.1 | 13.9 | 162 | 196 | 214 | 238 | 2.3 | 2 | 0.12 | 0.092 | |||
250 | 100 | 1220 | 1860 | 176 | 450 | 20 | C4130V | C4130K30V | 179 | 222 | 2.1 | 20 | 10.1 | 162 | 204 | 238 | 2 | 0.105 | 0.103 | |||||
270 | 73 | 980 | 1220 | 114 | 2400 | 3200 | 18 | C2230 | C2230K | 177 | 236 | 3 | 11.2 | 164 | 202 | 215 | 256 | 2.5 | 2.5 | 0.119 | 0.096 | |||
160 | 240 | 60 | 600 | 980 | 93 | 2200 | 3000 | 9.6 | C3032 | C3032K | 160 | 187 | 218 | 2.1 | 15 | 171 | 186 | 220 | 229 | 5.1 | 2 | 0.115 | 0.106 | |
240 | 80 | 765 | 1160 | 110 | 1700 | 2400 | 12.5 | C4032 | C4032K30 | 181 | 217 | 2.1 | 18.1 | 171 | 190 | 209 | 229 | 2.2 | 2 | 0.109 | 0.103 | |||
240 | 80 | 915 | 1460 | 140 | 600 | 13 | C4032V | C4032K30V | 181 | 217 | 2.1 | 18.1 | 8.2 | 171 | 199 | 229 | 2 | 0.109 | 0.103 | |||||
270 | 86 | 1000 | 1400 | 129 | 1900 | 2600 | 21.5 | C3132 | C3132K | 191 | 240 | 2.1 | 10.3 | 172 | 208 | 229 | 258 | 2.4 | 2 | 0.099 | 0.111 | |||
270 | 109 | 1460 | 2160 | 200 | 300 | 26 | C4132V | C4132K30V | 190 | 241 | 2.1 | 21 | 11.1 | 172 | 199 | 258 | 2 | 0.101 | 0.105 | |||||
290 | 104 | 1370 | 1830 | 170 | 1800 | 2400 | 29.5 | C3232 | C3232K | 194 | 256 | 3 | 19.3 | 174 | 218 | 242 | 276 | 2.6 | 2.5 | 0.112 | 0.096 | |||
170 | 260 | 67 | 750 | 1160 | 108 | 2000 | 2800 | 12.5 | C3034 | C3034K | 170 | 200 | 237 | 2.1 | 12.5 | 181 | 200 | 238 | 249 | 5.8 | 2 | 0.105 | 0.112 | |
260 | 90 | 1140 | 1860 | 173 | 500 | 17.5 | C4034V | C4034K30V | 195 | 236 | 2.1 | 17.1 | 7.2 | 181 | 218 | 249 | 2 | 0.108 | 0.103 | |||||
280 | 88 | 1040 | 1460 | 137 | 1900 | 2600 | 21 | C3134 | C3134K | 200 | 249 | 2.1 | 21 | 182 | 200 | 250 | 268 | 7.6 | 2 | 0.101 | 0.109 | |||
280 | 109 | 1530 | 2280 | 208 | 280 | 27 | C4134V | C4134K30V | 200 | 251 | 2.1 | 21 | 11.1 | 182 | 209 | 268 | 2 | 0.101. | 0.106 | |||||
310 | 86 | 1270 | 1630 | 146 | 1900 | 2600 | 28 | C2234 | C2234K | 209 | 274 | 4 | 16.4 | 187 | 223 | 254 | 293 | 3 | 3 | 0.114 | 0.1 | |||
180 | 280 | 74 | 880 | 1340 | 122 | 2000 | 2600 | 17 | C3036 | C3036K | 180 | 209 | 251 | 2.1 | 15.1 | 191 | 229 | 239 | 269 | 2 | 2 | 0.112 | 0.105 | |
280 | 100 | 1320 | 2120 | 196 | 430 | 23.5 | C4036V | C4036K30V | 203 | 247 | 2.1 | 20.1 | 10.2 | 191 | 231 | 269 | 2 | 0.107 | 0.103 | |||||
300 | 96 | 1250 | 1730 | 156 | 1700 | 2400 | 26.5 | C3136 | C3136K | 210 | 266 | 3 | 23.2 | 194 | 223 | 252 | 286 | 2.2 | 2.5 | 0.102 | 0.111 | |||
300 | 118 | 1760 | 2700 | 240 | 220 | 34.5 | C4136V | C4136K30V | 211 | 265 | 3 | 20 | 10.1 | 194 | 223 | 286 | 2.5 | 0.095 | 0.11 | |||||
320 | 112 | 1530 | 2200 | 193 | 1500 | 2000 | 38 | C3236 | C3236K | 228 | 289 | 4 | 27.3 | 197 | 249 | 271 | 303 | 3.2 | 3 | 0.107 | 0.104 | |||
190 | 290 | 75 | 930 | 1460 | 132 | 1800 | 2400 | 17.5 | C3038 | C3038K | 190 | 225 | 266 | 2.1 | 16.1 | 201 | 238 | 254 | 279 | 1.9 | 2 | 0.113 | 0.107 | |
290 | 100 | 1370 | 2320 | 208 | 380 | 24 | C4038V | C4038K30V | 220 | 263 | 2.1 | 20 | 10.1 | 201 | 245 | 279 | 2 | 0.108 | 0.103 | |||||
320 | 104 | 1700 | 2550 | 224 | 190 | 34.5 | C3138 | C3138K | 228 | 289 | 3 | 19 | 9.1 | 204 | 267 | 306 | 2.5 | 0.096 | 0.115 | |||||
320 | 128 | 2040 | 3150 | 275 | 130 | 43 | C4138V | C4138K30V | 222 | 284 | 3 | 20 | 10.1 | 204 | 233 | 306 | 2.5 | 0.094 | 0.111 | |||||
340 | 92 | 1370 | 1730 | 153 | 1800 | 2400 | 34.5 | C2238 | C2238K | 224 | 296 | 4 | 22.5 | 207 | 254 | 275 | 323 | 1.6 | 3 | 0.108 | 0.108 |
Basic Size | Basic load rating dynamic static | Fatigue load limit | Rated Speed | mass | Designation(Design) | Dimensions | Shoulder and chamfer dimensions | Calculation coefficient | ||||||||||||||||
d | D | B | C | Co | Pu | Reference Speed | Limit Speed | Cylindrical bore | Tapered bore | d | d2~ | D1~ | r1.2min | S11)~ | S21)~ | damin | damax | Damin | Damax | Ca2)min | ramax | K1 | K2 | |
mm | kN | kN | r/min | kg | mm | - | ||||||||||||||||||
200 | 310 | 82 | 1120 | 1730 | 153 | 1700 | 2400 | 22.5 | C3040 | C3040K | 200 | 235 | 285 | 2.1 | 15.2 | 211 | 250 | 272 | 299 | 2.9 | 2 | 0.123 | 0.095 | |
310 | 109 | 1630 | 2650 | 236 | 260 | 30.5 | C4040V | C4040K30V | 228 | 280 | 2.1 | 21 | 11.1 | 211 | 263 | 299 | 2 | 0.11 | 0.101 | |||||
340 | 112 | 1600 | 2320 | 220 | 1500 | 2000 | 41 | C3140 | C3140K | 244 | 305 | 3 | 27.3 | 214 | 264 | 288 | 326 | 0.6 | 2.5 | 0.108 | 0.104 | |||
340 | 140 | 2360 | 3650 | 315 | 80 | 54 | C4140V | C4140K30V | 237 | 302 | 3 | 22 | 12.1 | 214 | 244 | 326 | 2.5 | 0.092 | 0.112 | |||||
220 | 340 | 90 | 1320 | 2040 | 176 | 1600 | 2200 | 29.5 | C3044 | C3044K | 220 | 257 | 310 | 3 | 17.2 | 233 | 270 | 295 | 327 | 3.1 | 2.5 | 0.114 | 0.104 | |
340 | 118 | 1930 | 3250 | 275 | 200 | 40 | C4044V | C4044K30V | 251 | 306 | 3 | 20 | 10.1 | 233 | 250 | 327 | 2.5 | 0.095 | 0.113 | |||||
370 | 120 | 1900 | 2900 | 245 | 1400 | 1800 | 52 | C3144 | C3144K | 268 | 333 | 4 | 22.3 | 237 | 290 | 315 | 353 | 3.5 | 3 | 0.114 | 0.097 | |||
400 | 108 | 2000 | 2500 | 208 | 1500 | 2000 | 57.5 | C2244 | C2244K | 259 | 350 | 4 | 20.5 | 237 | 298 | 321 | 383 | 1.7 | 3 | 0.113 | 0.101 | |||
240 | 360 | 92 | 1340 | 2160 | 183 | 1500 | 2000 | 32 | C3048 | C3048K | 240 | 276 | 329 | 3 | 19.2 | 253 | 293 | 312 | 347 | 1.3 | 2.5 | 0.113 | 0.106 | |
400 | 128 | 2320 | 3450 | 285 | 1300 | 1700 | 64 | C3148 | C3148K | 281 | 357 | 4 | 20.4 | 257 | 309 | 334 | 383 | 3.7 | 3 | 0.116 | 0.095 | |||
260 | 400 | 104 | 1760 | 2850 | 232 | 1300 | 1800 | 47 | C3052 | C3052K | 260 | 305 | 367 | 4 | 19.3 | 275 | 326 | 349 | 385 | 3.4 | 3 | 0.122 | 0.096 | |
440 | 144 | 2650 | 4050 | 325 | 1100 | 1500 | 88 | C3152 | C3152K | 314 | 394 | 4 | 26.4 | 277 | 341 | 371 | 423 | 4.1 | 3 | 0.115 | 0.096 | |||
280 | 420 | 106 | 1860 | 3100 | 250 | 1200 | 1600 | 50.5 | C3056 | C3056K | 280 | 328 | 389 | 4 | 21.3 | 295 | 352 | 373 | 405 | 1.8 | 3 | 0.121 | 0.098 | |
460 | 146 | 2850 | 4500 | 355 | 1100 | 1400 | 94.5 | C3156 | C3156K | 336 | 416. | 5 | 28.4 | 300 | 363 | 392 | 440 | 4.1 | 4 | 0.115 | 0.097 | |||
300 | 460 | 118 | 2160 | 3750 | 290 | 1100 | 1500 | 72 | C3060M | C3060KM | 300 | 351 | 417 | 4 | 20 | 315 | 376 | 402 | 445 | 1.7 | 3 | 0.123 | 0.095 | |
460 | 160 | 2900 | 4900 | 390 | 900 | 1200 | 95.5 | C4060M | C4060K30M | 338 | 410 | 4 | 30.4 | 315 | 362 | 396 | 445 | 2.8 | 3 | 0.105 | 0.106 | |||
500 | 160 | 3250 | 5200 | 400 | 950 | 1300 | 125 | C3160 | C31 60K | 362 | 448 | 5 | 30.5 | 320 | 392 | 422 | 480 | 4.9 | 4 | 0.106 | 0.106 | |||
320 | 480 | 121 | 2280 | 4000 | 305 | 1000 | 1400 | 78 | C3064M | C3064KM | 320 | 375 | 441 | 4 | 23.3 | 335 | 398 | 426 | 465 | 1.8 | 3 | 0.121 | 0.098 | |
540 | 176 | 4150 | 6300 | 480 | 900 | 1300 | 164 | C3164M | C31 64KM | 371 | 477 | 5 | 26.7 | 340 | 411 | 452 | 520 | 4.2 | 4 | 0.114. | 0.096 | |||
340 | 520 | 133 | 2900 | 5000 | 375 | 950 | 1300 | 100 | C3068M | C3068KM | 340 | 402 | 482 | 5 | 25.4 | 358 | 430 | 465 | 502 | 1.9 | 4 | 0.12 | 0.099 | |
580 | 190 | 4900 | 7500 | 560 | 850 | 1100 | 205 | C3 168M | C3168KM | 402 | 517 | 5 | 25.9 | 360 | 446 | 489 | 560 | 4.2 | 4 | 0.118 | 0.093 | |||
360 | 480 | 90 | 1760 | 3250 | 245 | 1000 | 1400 | 45 | C3972M | C3972KM | 360 | 394 | 450 | 3 | 17.2 | 373 | 409 | 435 | 467 | 1.6 | 2.5 | 0.127 | 0.104 | |
540 | 134 | 2900 | 5000 | 375 | 900 | 1300 | 106 | C3072M | C3072KM | 416 | 497 | 5 | 26.4 | 378 | 448 | 476 | 522 | 2 | 4 | 0.12 | 0.099 | |||
600 | 192 | 5000 | 8000 | 585 | 800 | 1100 | 220 | C3172M | C3172KM | 423 | 537 | 5 | 27.9 | 380 | 464 | 507 | 580 | 3.9 | 4 | 0.117 | 0.094 | |||
380 | 520 | 106 | 2120 | 4000 | 300 | 950 | 1300 | 66 | C3976M | C3976KM | 380 | 428 | 489 | 4 | 21 | 395 | 450 | 475 | 505 | 1.8 | 3 | 0.129 | 0.098 | |
560 | 135 | 3000 | 5200 | 380 | 900 | 1200 | 110 | C3076M | C3076KM | 431 | 512 | 5 | 27.9 | 398 | 462 | 491 | 542 | 2 | 4 | 0.12 | 0.1 | |||
620 | 194 | 4400 | 7200 | 520 | 750 | 1000 | 243 | C3176MB | C3176KMB | 446 | 551 | 5 | 25.4 | 400 | 445 | 526 | 600 | 7.3 | 4 | 0.106 | ||||
400 | 540 | 106 | 2120 | 4000 | 290 | 900 | 1300 | 68.5 | C3980M | C3980KM | 400 | 439 | 501 | 4 | 21 | 415 | 461 | 487 | 525 | 1.8 | 3 | 0.13 | 0.098 | |
600 | 148 | 3650 | 6200 | 450 | 800 | 1100 | 145 | C3080M | C3080KM | 457 | 554 | 5 | 30.6 | 418 | 486 | 523 | 582 | 2.1 | 4 | 0.121 | 0.099 | |||
650 | 200 | 4800 | 8300 | 585 | 700 | 950 | 258 | C3180M | C3180KM | 488 | 589 | 6 | 50.7 | 426 | 525 | 566 | 624 | 4 | 5 | 0. 106 | 0.109 | |||
420 | 560 | 106 | 2160 | 4250 | 310 | 850 | 1200 | 72 | C3984M | C3984KM | 420 | 461 | 523 | 4 | 21.3 | 435 | 484 | 510 | 545 | 1.8 | 3 | 0.132 | 0.098 | |
620 | 150 | 3800 | 6400 | 455 | 800 | 1100 | 150 | C3084M | C3084KM | 475 | 571 | 5 | 32.6 | 438 | 513 | 544 | 602 | 2.2 | 4 | 0.12 | 0.1 | |||
700 | 224 | 6000 | 10400 | 720 | 670 | 900 | 355 | C3184M | C3 184KM | 507 | 618 | 6 | 34.8 | 446 | 544 | 592 | 674 | 3.8 | 5 | 0.113 | 0.098 | |||
440 | 600 | 118 | 2600 | 5300 | 375 | 800 | 1100 | 99 | C3988M | C3988KM | 440 | 494 | 560 | 4 | 20 | 455 | 517 | 546 | 585 | 1.9 | 3 | 0.133 | 0.095 | |
650 | 157 | 3750 | 6400 | 450 | 750 | 1000 | 190 | C3088MB , | C3088KMB | 490 | 587 | 6 | 24.6 | 463 | 489 | 563 | 627 | 3.5 | 5 | 0.105 | ||||
720 | 226 | 6700 | 11400 | 780 | 530 | 850 | 385 | C3188MB | C3188KMB | 522 | 647 | 6 | 16 | 466 | 521 | 613 | 694 | 7.5 | 5 | 0.099 | ||||
460 | 620 | 118 | 2700 | 5300 | 375 | 800 | 1100 | 100 | C3992M | C3992KM | 460 | 506 | 577 | 4 | 20 | 475 | 546 | 563 | 605 | 3.7 | 3 | 0.122 | 0.11 | |
680 | 163 | 4000 | 7500 | 520 | 700 | 950 | 205 | C3092M | C3092KM | 539 | 624 | 6 | 33.5 | 483 | 570 | 604 | 657 | 2.3 | 5 | 0.114 | 0.108 | |||
760 | 240 | 6800 | 12000 | 815 | 600 | 800 | 435 | C3192M | C3192KM | 559 | 679 | 7.5 | 51 | 492 | 603 | 651 | 728 | 4.2 | 6 | 0.108 | 0.105 | |||
760 | 300 | 8300 | 15000 | 1020 | 480 | 630 | 571 | C4192MB | C4192K30MB | 537 | 671 | 7.5 | 23.3 | 477 | 536 | 638 | 728 | 13 | 6 | 0.111 | 0.097 | |||
480 | 650 | 128 | 3100 | 6100 | 425 | 750 | 1000 | 120 | C3996M | C3996KM | 480 | 528 | 604 | 5 | 20.4 | 498 | 552 | 585 | 632 | 2 | 4 | 0.133 | 0.095 | |
700 | 165 | 4050 | 7800 | 530 | 670 | 900 | 215 | C3096M | C3096KM | 555 | 640 | 6 | 35.5 | 503 | 586 | 620 | 677 | 2.3 | 5 | 0.113 | 0.11 | |||
790 | 248 | 6950 | 12500 | 830 | 560 | 750 | 523 | C3196MB | C3196KMB | 578 | 701 | 7.5 | 35.1 | 512 | 577 | 673 | 758 | 8.7 | 6 | 0.109 | ||||
500 | 670 | 128 | 3150 | 6300 | 430 | 700 | 950 | 125 | C39/500M | C39/500KM | 500 | 555 | 632 | 5 | 20.4 | 518 | 580 | 614 | 652 | 2 | 4 | 0.135 | 0.095 | |
720 | 167 | 4250 | 8300 | 560 | 630 | 900 | 225 | C30/500M | C30/ 500KM | 571 | 656 | 6 | 37.5 | 523 | 600 | 637 | 697 | 2.3 | 5 | 0.113 | 0.111 | |||
830 | 264 | 7500 | 12700 | 850 | 530 | 750 | 560 | C31 /500M | C31/ 500KM | 605 | 738 | 7.5 | 75.3 | 532 | 654 | 706 | 798 | 11.7 | 6 | 0.099 | 0.116 | |||
830 | 325 | 9800 | 1 7600 | 1160 | 430 | 560 | 710 | C41/500M | C41/ 500K30M | 600 | 740 | 7.5 | 46.3 | 532 | 637 | 721 | 798 | 5.9 | 6 | 0.115 | 0.093 | |||
530 | 710 | 136 | 3550 | 7100 | 480 | 670 | 900 | 150 | C39/530M | C39/530KM | 530 | 577 | 658 | 5 | 28.4 | 548 | 603 | 639 | 692 | 2.3 | 4 | 0.129 | 0.101 | |
780 | 185 | 5100 | 9500 | 630 | 600 | 800 | 300 | C30/530M | C30/530KM | 601 | 705 | 6 | 35.7 | 553 | 638 | 681 | 757 | 2.5 | 5 | 0.12 | 0.101 | |||
870 | 272 | 8800 | 15600 | 1020 | 500 | 670 | 636 | C31 /530M | C31/530KM | 635 | 781 | 7.5 | 44.4 | 562 | 685 | 745 | 838 | 5.4 | 6 | 0.115 | 0.097 | |||
560 | 750 | 140 | 3600 | 7350 | 490 | 600 | 850 | 175 | C39/560M | C39 /560KM | 560 | 621 | 701 | 5 | 32.4 | 578 | 648 | 682 | 732 | 2.3 | 4 | 0.128 | 0.104 | |
820 | 195 | 5600 | 11000 | 720 | 530 | 750 | 350 | C30/560M | C30/560KM | 659 | 761 | 6 | 45.7 | 583 | 696 | 736 | 797 | 2.7 | 5 | 0.116 | 0.106 | |||
920 | 280 | 9150 | 16300 | 1040 | 480 | 670 | 789 | C31 /560MB | C31/560KMB | 660 | 808 | 7.5 | 24.5 | 592 | 659 | 769 | 888 | 11 | 6 | 0 | 0.1 | |||
600 | 800 | 150 | 4000 | 8800 | 570 | 560 | 750 | 215 | C39/ 600M | C39/ 600KM | 600 | 666 | 745 | 5 | 32.4 | 618 | 685 | 725 | 782 | 2.4 | 4 | 0.131 | 0.1 | |
870 | 200 | 6300 | 12200 | 780 | 500 | 700 | 395 | C30/ 600M | C30 /600KM | 692 | 805 | 6 | 35.9 | 623 | 776 | 776 | 847 | 2.7 | 5 | 0.125 | 0.098 | |||
980 | 300 | 10200 | 18000 | 1140 | 430 | 600 | 929 | C31 / 600MB | C31/ 600KMB | 705 | 871 | 7.5 | 26.1 | 632 | 704 | 827 | 948 | 5.1 | 6 | 0.107 | ||||
630 | 850 | 165 | 4650 | 10000 | 640 | 530 | 700 | 275 | C39 / 630M | C39/ 630KM | 630 | 699 | 785 | 6 | 35.5 | 653 | 723 | 766 | 827 | 2.4 | 5 | 0.121 | 0.11 | |
920 | 212 | 6800 | 12900 | 830 | 480 | 670 | 470 | C30/ 630M | C30/ 630KM | 716 | 840 | 7.5 | 48.1 | 658 | 759 | 807 | 892 | 2.9 | 6 | 0.118 | 0.104 | |||
1030 | 315 | 11800 | 20800 | 1290 | 400 | 560 | 1090 | C31/630MB | C31/ 630KMB | 741 | 916 | 7.5 | 23.8 | 662 | 740 | 868 | 998 | 5.7 | 6 | 0.102 | ||||
670 | 900 | 170 | 4900 | 11200 | 695 | 480 | 630 | 315 | C39/ 670M | C39/ 670KM | 670 | 764 | 848 | 6 | 40.5 | 693 | 789 | 830 | 877 | 2.5 | 5 | 0.121 | 0.113 | |
980 | 230 | 8150 | 16300 | 1000 | 430 | 600 | 590 | C30/670M | C30/ 670KM | 775 | 905 | 7.5 | 41.1 | 698 | 820 | 874 | 952 | 2.9 | 6 | 0.121 | 0.101 | |||
1090 | 336 | 11800 | 21200 | 1290 | 380 | 500 | 1300 | C31 / 670MB | C31 / 670KMB | 792 | 964 | 7.5 | 41 | 702 | 791 | 922 | 1058 | 11 | 6 | 0.109 | ||||
710 | 950 | 180 | 6000 | 12500 | 780 | 450 | 630 | 360 | C39/710M | C39/710KM | 710 | 772 | 877 | 6 | 30.7 | 733 | 797 | 847 | 927 | 2.7 | 5 | 0.131 | 0.098 | |
1030 | 236 | 8800 | 17300 | 1060 | 400 | 560 | 655 | C30/710M | C30/710KM | 806 | 946 | 7.5 | 47.3 | 738 | 853 | 908 | 1002 | 3.2 | 6 | 0.119 | 0.104. | |||
1030 | 31 5 | 10600 | 21600 | 1320 | 320 | 430 | 865 | C40/710M | C40/710K30M | 803 | 935 | 7.5 | 51.2 | 738 | 843 | 911 | 1002 | 4.4 | 6 | 0.113 | 0.101 | |||
1150 | 345 | 13400 | 25500 | 1530 | 340 | 480 | 1470 | C31/710MB | C31 /710KMB | 842 | 1013 | 9.5 | 47.8 | 750 | 841 | 973 | 1110 | 11 | 8 | 0.094 | ||||
750 | 1000 | 185 | 6100 | 13400 | 815 | 430 | 560 | 410 | C39/ 750M | C39/750KM | 750 | 830 | 934. | 6 | 35.7 | 773 | 856 | 908 | 977 | 2.7 | 5 | 0.131 | 0.101 | |
1090 | 250 | 9500 | 19300 | 1160 | 380 | 530 | 838 | C30/ 750MB | C30/ 750KMB | 854 | 993 | 7.5 | 28.6 | 778 | 852 | 961 | 1062 | 7.4 | 6 | 0.11 | ||||
1220 | 365 | 16000 | 30500 | 1800 | 320 | 450 | 1810 | C31/750MB | C31/750KMB | 884 | 1077 | 9.5 | 33 | 790 | 883 | 1025 | 1180 | 9.3 | 8 | 0.094 | ||||
800 | 1060 | 195 | 6400 | 14600 | 880 | 380 | 530 | 480 | C39 /800M | C39/ 800KM | 800 | 888 | 990 | 6 | 45.7 | 823 | 917 | 967 | 1037 | 2.9 | 5 | 0.126 | 0.106 | |
1150 | 258 | 9300 | 19300 | 1140 | 360 | 480 | 941 | C30/800MB | C30/800KMB | 908 | 1048 | 7.5 | 45.9 | 828 | 905 | 1020 | 1122 | 7.2 | 6 | 0.114 | ||||
1280 | 375 | 1 5600 | 30500 | 1560 | 300 | 400 | 2030 | C31 / 800MB | C31 / 800KMB | 843 | 1134 | 9.5 | 39.4 | 840 | 941 | 1085 | 1240 | 14 | 8 | 0.097 | ||||
850 | 1120 | 200 | 7350 | 16300 | 960 | 360 | 480 | 530 | C39/850M | C39/ 850KM | 850 | 940 | 1053 | 6 | 35.9 | 873 | 963 | 1025 | 1097 | 2.9 | 5 | 0.135 | 0.098 | |
1220 | 272 | 11600 | 24500 | 1430 | 320 | 450 | 1110 | C30/850MB, | C30/ 850KMB | 964 | 1113 | 7.5 | 24 | 878 | 963 | 1077 | 1192 | 7.7 | 6 | 0.097 | ||||
1360 | 400 | 16600 | 33500 | 1900 | 280 | 380 | 2450 | C31/850MB | C31 /850KMB | 1013 | 1201 | 12 | 62.8 | 898 | 1011 | 1159 | 1312 | 14 | 10 | 0.103 | ||||
900 | 1180 | 206 | 8300 | 18600 | 1080 | 360 | 450 | 633 | C39/900MB | C39/900KMB | 900 | 986 | 1113 | 6 | 22.9 | 923 | 984 | 1086 | 1157 | 5.8 | 5 | 0.101 | ||
1280 | 280 | 12700 | 26500 | 1530 | 300 | 400 | 1200 | C30/900MB | C30/900KMB | 1005 | 1173 | 7.5 | 24.8 | 928 | 1003 | 1126 | 1252 | 9 | 6 | 0.1 | ||||
950 | 1250 | 224 | 9300 | 22000 | 1250 | 300 | 430 | 784 | C39/950MB | C39/950KMB | 950 | 1042 | 1167 | 7.5 | 14.5 | 978 | 1040 | 1139 | 1222 | 6.6 | 6 | 0.098 | ||
1360 | 300 | 13200 | 28500 | 1600 | 280 | 380 | 1487 | C30/950MB | C30/950KMB | 1075 | 1241 | 7.5 | 37.8 | 978 | 1073 | 1204 | 1332 | 8.7 | 6 | 0.107 | ||||
1000 | 1420 | 308 | 13700 | 30500 | 1700 | 260 | 360 | 1680 | C30/ 1000MB | C30/ 1000KMB | 1000 | 1130 | 1295 | 7.5 | 44.9 | 1028 | 1128 | 1260 | 1392 | 8.5 | 6 | 0.11 | ||
1580 | 462 | 20400 | 45500 | 2500 | 220 | 300 | 3800 | C31 / 1000MB | C31/ 1000KMB | 1191 | 1372 | 12 | 70.1 | 1048 | 1189 | 1338 | 1532 | 15 | 10 | 0.108 | ||||
1060 | 1400 | 250 | 11000 | 26000 | 1430 | 260 | 360 | 1120 | C39/ 1060MB | C39/1060KMB | 1060 | 1168 | 1308 | 7.5 | 38.4 | 1088 | 1164 | 1282 | 1372 | 6 | 6 | 0.11 | ||
1180 | 1540 | 272 | 13400 | 33500 | 1800 | 220 | 300 | 1400 | C39/1180MB | C39/ 1180KMB | 1180 | 1291 | 1439 | 7.5 | 19.6 | 1208 | 1289 | 1405 | 1512 | 6.2 | 6 | 0.097 | ||
1250 | 1750 | 375 | 22000 | 49000 | 2550 | 180 | 240 | 2980 | C30/1250MB | C30/ 1250KMB | 1250 | 1392 | 1614 | 9.5 | 40.3 | 1290 | 1390 | 1559 | 1710 | 12 | 8 | 0.126 |
